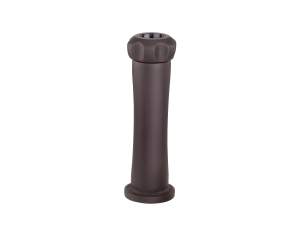

Legacy Molded Composite Optical Post Holders

ValuMax® Series Optical Post Holders are precision molded from insulating composite material with an integrated pedestal base and a collet locking collar for easy tightening by hand. ValuMax posts and post holders are ideal for cost sensitive mounting applications available in 5 standard sizes from 1.0 to 4.0 inch height.

Insulating, high-stiffness & creep resistant thermoplastic material
Locks easily by hand with collet-locking mechanism
Integrated pedestal base design offers versatile clamp mounting
Compatible with 0.5 in. diameter optical posts
Legacy models on clearance while supplies last

See All Features

Description	Compatibility	Avail.
VPHV-1 Molded Composite Optical Post HoldersOptical Post Holder, Composite, 1.0 in. Height, Pedestal Base	UNIVERSAL	Discontinued
VPHV-1-F Molded Composite Optical Post HoldersOptical Post Holder, Composite, Clamping Fork, 1.0 in. Height	UNIVERSAL	Discontinued
VPHV-1.5 Molded Composite Optical Post HoldersOptical Post Holder, Composite, 1.5 in. Height, Pedestal Base	UNIVERSAL	Discontinued
VPHV-1.5-F Molded Composite Optical Post HoldersOptical Post Holder, Composite, Clamping Fork, 1.5 in. Height	UNIVERSAL	Discontinued
VPHV-2 Molded Composite Optical Post HoldersOptical Post Holder, Composite, 2.0 in. Height, Pedestal Base	UNIVERSAL	Discontinued
VPHV-2-F Molded Composite Optical Post HoldersOptical Post Holder, Composite, Clamping Fork, 2.0 in. Height	UNIVERSAL	Discontinued
VPHV-3-F Molded Composite Optical Post HoldersOptical Post Holder, Composite, Clamping Fork, 3.0 in. Height	UNIVERSAL	Discontinued
VPHV-4 Molded Composite Optical Post HoldersOptical Post Holder, Composite, 4.0 in. Height, Pedestal Base	UNIVERSAL	Discontinued
VPHV-4-F Molded Composite Optical Post HoldersOptical Post Holder, Composite, Clamping Fork, 4.0 in. Height	UNIVERSAL	Discontinued

Specifications

Features

Cost-effective Solution with Intelligent Design

ValuMax® Series Optical Post Holders are precision molded from an insulating composite material known as Ryton® having an exceptional degree of thermal stability, dimensional stability, and chemical resistance. These post holders, as well as the ValuMax® posts, are ideal for cost sensitive mounting applications for 0.5 in. optical posts.

Unique Collet Locking Mechanism

The post holders feature a unique collet locking mechanism which allows one-handed locking and unlocking of the optical post height and orientation. This design also offers a locking mechanism with a symmetric profile, narrower than those with thumb-turned locking mechanisms. The machined-in pedestal base offers the flexibility of securing components anywhere on an optical table when using a PS-F Slotted Clamping Fork.

Available in Five Heights

VPH series post holders are available in five sizes to provide a wide variety of continuous height options when combined with the various optical post lengths. Holders are offered with 1.0 in, 1.5 in., 2.0in., 3.0 in. and 4.0 in. (25.4 mm, 38.1 mm, 50.8 mm, and 76.2 mm) lengths. These post holders also have an open bore, so that the post can be lowered completely to the table surface.

Versatile Accessories and Options

The VPHV-F model post holders include a clamping fork with the ValuMax® post holder of your choice. The optional threaded insert, VPHV-A (M-VPHV-A) , can be threaded into the bottom of the post holder to provide a 1/4-20 (M6) threaded hole for attachment directly to an optical table or breadboard, sold in packs of 10. ValuMax optical post holders are compatible with multiple 0.5 inch optical posts including Molded Composite Optical Mounting Posts, and SP Series posts.

Accessories

Molded Composite Optical Posts

We recommend the following optical posts for use with our molded composite post holders.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

Threaded Inserts

Add these threaded inserts to the base of our molded composite post holders for direct mounting to an optical table or breadboard.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
