Bare Fiber Adapters for Photodiode Sensors
Bare Fiber Adapters for Photodiode Sensors

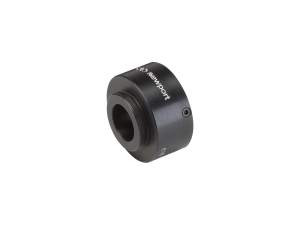

Our bare fiber holder is a cleverly designed fiber clamp that is used to hold 250 μm bare fibers without damaging the fiber. It in turn plugs into the 818-FA2 Bare Fiber Holder Mount which allows one to attach the assembly to the front end of the detector housing.
- Bare fiber adapter for 918D and 818 Series photodiode sensors
- Requires 818-FA2 adapter
- Connects directly to 819C and 819D integrating spheres See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 818-FA2 Bare Fiber Adapters for Photodiode SensorsBare Fiber Adapter Mount, 818 & 918D Series Sensors | |||||
 | BF820 Bare Fiber Adapters for Photodiode SensorsBare Fiber Holder, CA120 or AO120 / AO122 Fiber Adapter Mount | |||||

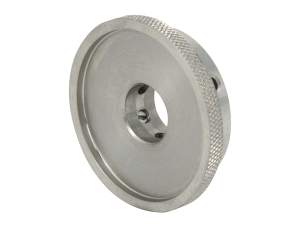

 | CA120 Bare Fiber Adapters for Photodiode SensorsBare Fiber Adapter Mount, For FMH Series and OMH-6790B | |||||
 | CA250 Bare Fiber Adapters for Photodiode SensorsBare Ferrule Adapter, For FMH Series and OMH-6790B | |||||
 | FP3-FH1 Bare Fiber Adapters for Photodiode SensorsBare Fiber Holder, 818-FA2 Fiber Adapter Mount |
Features
Measure Light from Optical Fibers

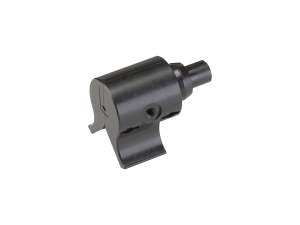

The FP3-FH1 Bare Fiber Holder is a cleverly designed fiber clamp that is used to hold 250 µm bare fibers without damaging it. It directly plugs into the 918D-IS series integrating sphere-based detectors. Combined with an 818-FA2 Adapter Mount, it can also be used for any 918D and 818 series photodiode power sensors.
Bare Fiber Holder for ILX Measurement Heads

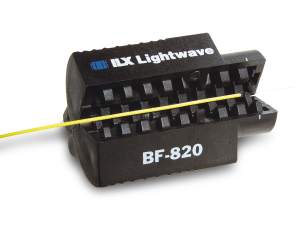

The BF-820 Bare Fiber Holder is compatible with both ILX Lightwave® and Agilent adapter rings and is designed to hold and position a common telecom fiber. Inside the BF-820, opposing V-guides facilitate correct fiber positioning. Outside, textured finger grips enable single-handed maneuvering of the fiber holder into the meter. It requires CA120 for FMH series fiber optic sensors or AO120 for OMH series power and wavelength measurement heads.
