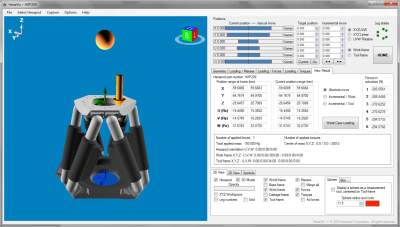

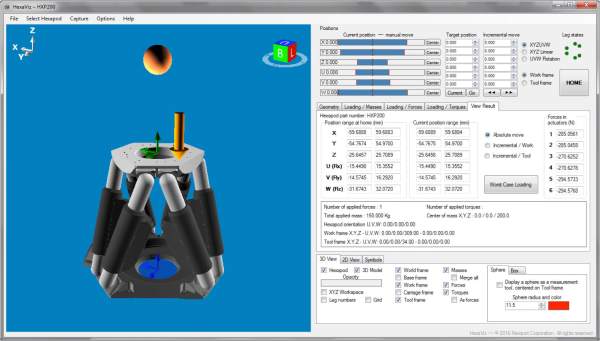

HexaViz main overview screen with current configuration, positions, load and force values.

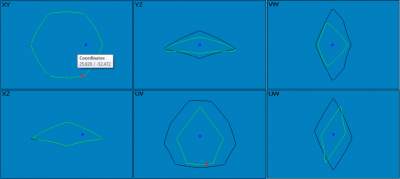

Explore multiple 2-D linear & angular workspaces simultaneously.

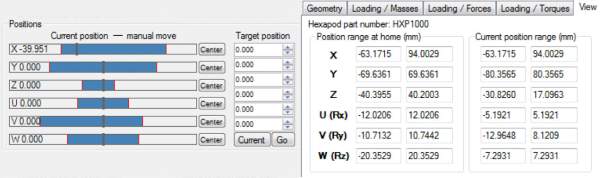

Execute manual hexapod moves with sliders and perform absolute and incremental moves with 'Tool & Work' frames.
Virtual hexapod orientation, coordinate system adjustments, and motion simulation previews.

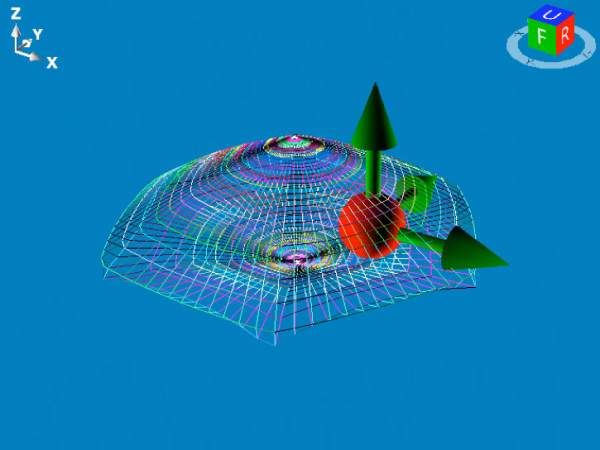

Validate entire XYZ workspace in 3-D.
Performance testing by load, force, and torque (useful in finding worst case positions).

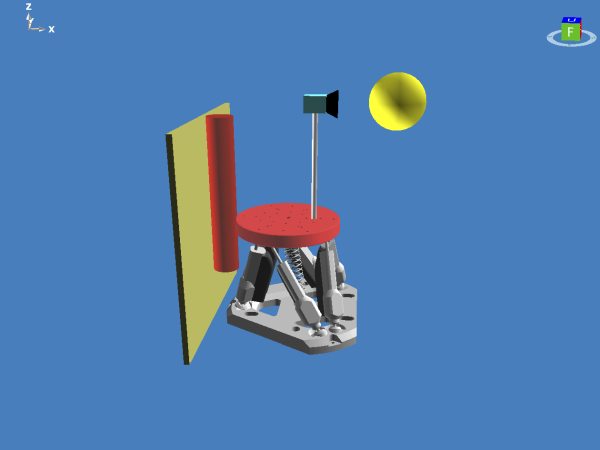

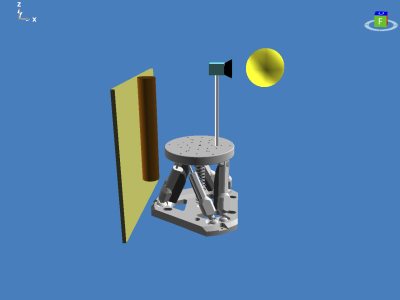

Collision Simulation.

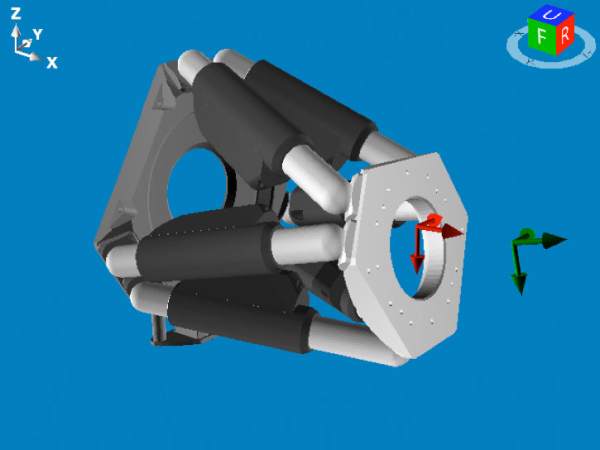

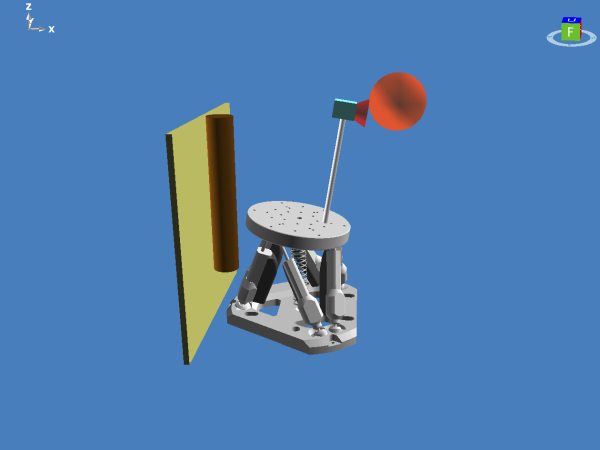

Collision between hexapods and objects.

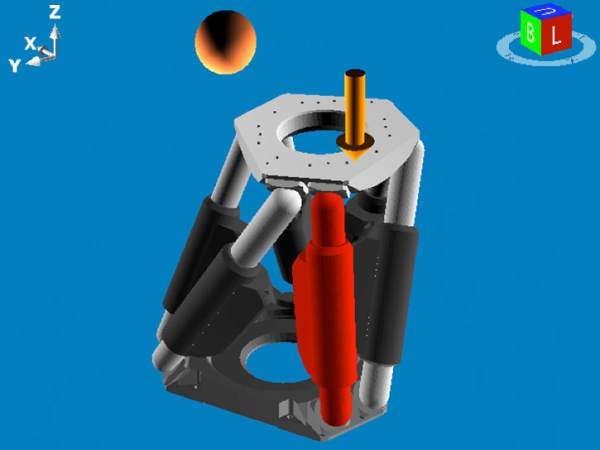

Collision between objects on hexapods and fixed objects.
HexaViz Key Features:
- Compatible with Newport's complete line of HXP Series Hexapods
- Graphical display of travel ranges axis-by-axis, in 2-D or XYZ 3-D views
- Manual sliders for motion
- Incremental motion capability
- Coordinate system and Hexapod orientation configuration
- Hexapod actuator load capacity and overload condition verification, when loads, forces or torques are applied
- Display of worst case positions
- Ability to save configuration for easy recall
- 3D file import or creation using an existing library
- Collision Simulation
- Between hexapods and objects
- Between objects on hexapods and fixed objects
Software Compatibility:
- Operating System: Microsoft Windows 7, 8 and 10*
- Free Disk Space: 2 GB
- Memory (RAM): 1 GB
- Graphics Hardware: DirectX 9 compatible
- Monitor Resolution: WXGA (1366x768) or higher
- Runtime requirement: Microsoft .NET Framework 4.0 Client Profile or higher
HexaViz Hexapod Simulation Software Brochure ( 2.5 MB, PDF)
*NOTE: HexaViz runs on any PC equipped with DirectX 9-compatible graphics hardware capable of a WXGA display resolution. All modern Windows based PCs are capable of running HexaViz. It is possible to run this program under Windows XP SP3 or Vista SP1, provided a DirectX 9-compatible display driver is installed. Although the software works on these machines, we do not provide support for such legacy configurations.
