Cube Beamsplitter, Non-Polarizing, 25.4 mm, 532 nm Laser Line

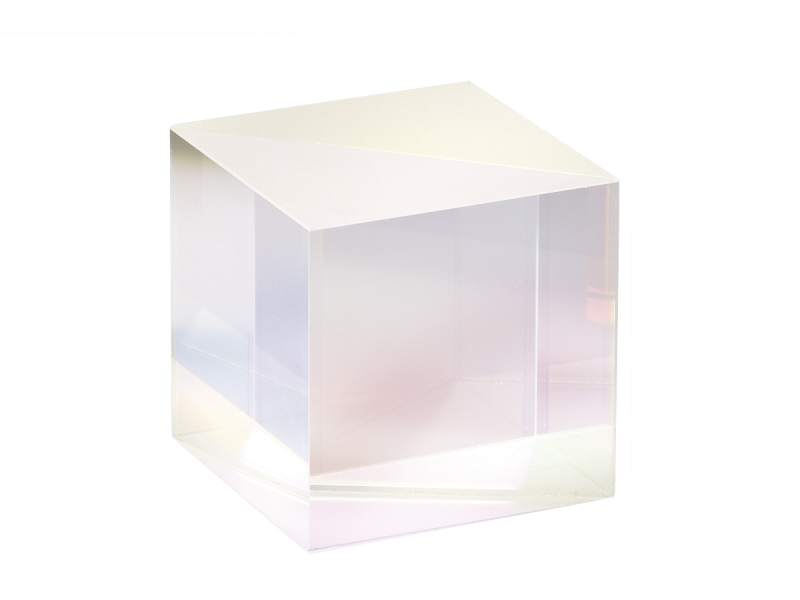

The 10BC16NP.3 Laser Line Non-Polarizing Cube Beamsplitter is a 1.0 inch (25.4 mm) cube beamsplitter optimized for the 532 nm laser line. Our laser line non-polarizing cube beamsplitters provide true 50/50 beam splitting without altering the beam polarization, with the s- and p-polarized components matched to within 3%.

Specifications

Technical Specs

Wavelength Range
532 nm
Size
25.4 x 25.4 x 25.4 mm
Shape
Cube
Material
Grade A N-BK7
Coating Type
Broadband all-dielectric non-polarizing
Coating Code
NP.3
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±2°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_{s, p} = 50 ±3%
Reflected Beam Deviation
90° ±5 arc min

Transmitted Beam Deviation
≤5 arc min
Polarization
S- and P-polarization components matched to within 3%,|T_s - T_p| ≤3%, |R_s - R_p| ≤3%
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
1000 W/cm² CW, 1 J/cm² with a 10 nsec pulse @ 532 nm, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Wavelength Range
532 nm
Size
25.4 x 25.4 x 25.4 mm
Shape
Cube
Material
Grade A N-BK7
Coating Type
Broadband all-dielectric non-polarizing
Coating Code
NP.3
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±2°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_{s, p} = 50 ±3%
Reflected Beam Deviation
90° ±5 arc min

Transmitted Beam Deviation
≤5 arc min
Polarization
S- and P-polarization components matched to within 3%,|T_s - T_p| ≤3%, |R_s - R_p| ≤3%
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
1000 W/cm² CW, 1 J/cm² with a 10 nsec pulse @ 532 nm, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Resources & Downloads

3D Product Models

Other

10BC16NP.3 RoHS Certificate(264.9 kB, PDF)
10BC16NP.3_ROHS2-2021.pdf(279.6 kB, PDF)
