Optical Filter, Mercury Line, 25.4 mm, 334.1±2 nm Center, 12±2nm FWHM

Mercury Line Bandpass Filters

Mercury Line Bandpass Filters

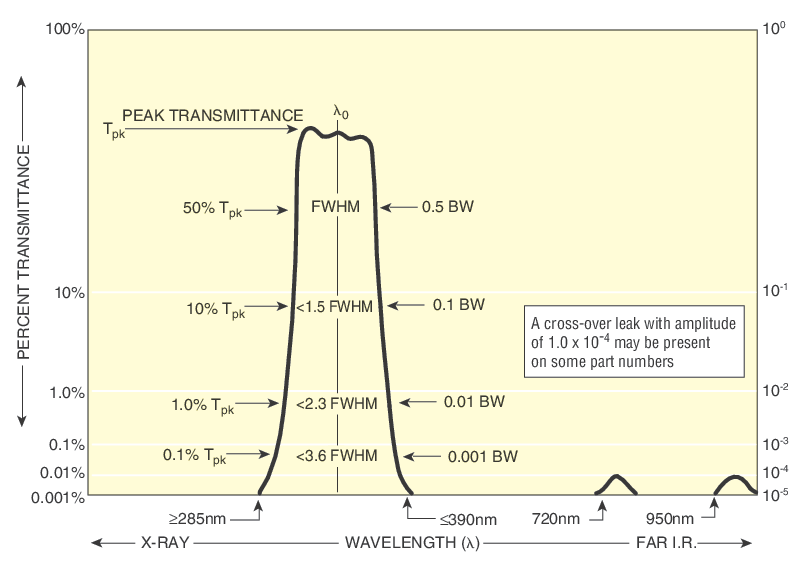

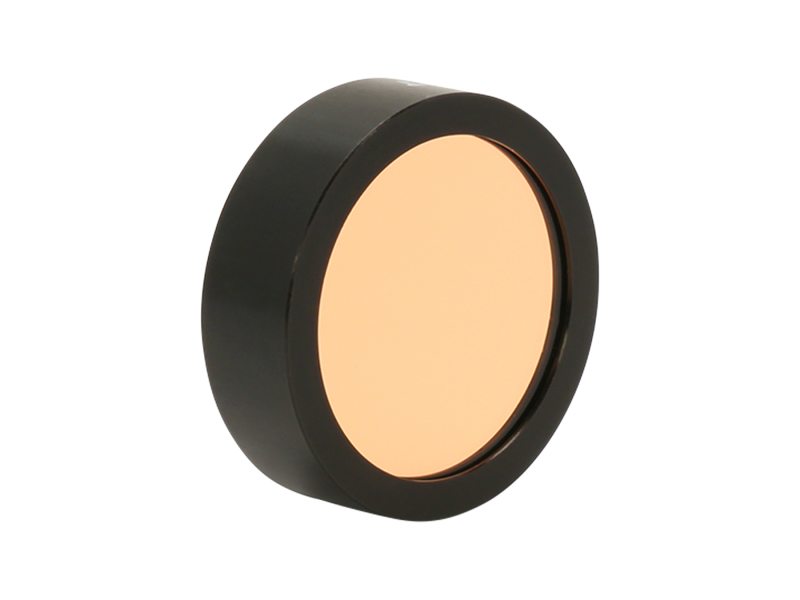

The 10MLF10-334 Mercury Line Bandpass Filter is a 1 inch (25.4 mm) diameter, Mercury line filter with a center wavelength of 334.1 ± 2 nm, and a full width half max of 12 ± 2 nm.

Specifications

Technical Specs

Type
Mercury Line Filters
Center Wavelength
334.1 nm
Center Wavelength Tolerance
±2 nm
FWHM
12±2 nm
Effective Index of Refraction
1.57

Size Tolerance
+0 mm/-0.8 mm
Thickness
0.35 in.
Surface Quality
80-50 scratch-dig
Minimum Peak Transmission
35%
Cleaning
See How to Clean Optics

Type
Mercury Line Filters
Center Wavelength
334.1 nm
Center Wavelength Tolerance
±2 nm
FWHM
12±2 nm
Effective Index of Refraction
1.57

Size Tolerance
+0 mm/-0.8 mm
Thickness
0.35 in.
Surface Quality
80-50 scratch-dig
Minimum Peak Transmission
35%
Cleaning
See How to Clean Optics
