Optical Filter, Mercury Line, 25.4 mm, 404.7±2 nm Center 10±2nm FWHM

Mercury Line Bandpass Filters

Mercury Line Bandpass Filters

Mercury Line Bandpass Filters

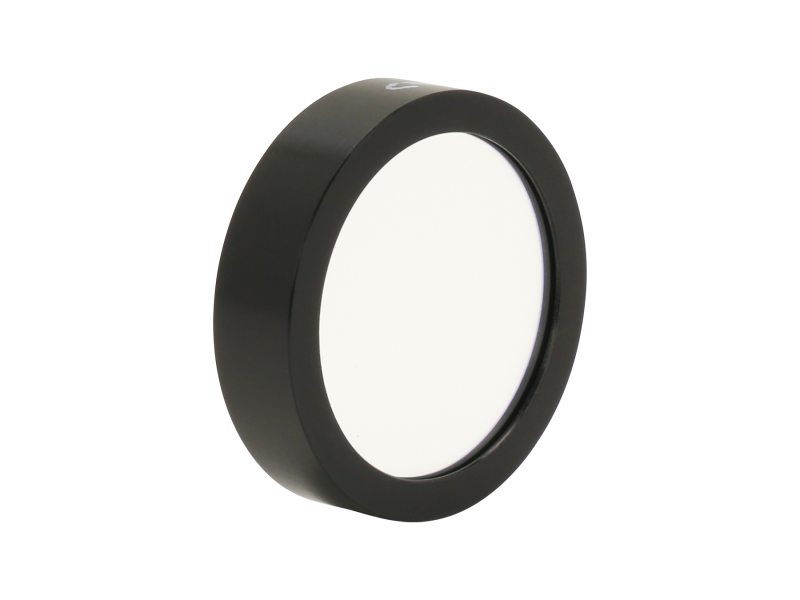

The 10MLF10-405 Mercury Line Bandpass Filter is a 1 inch (25.4 mm) diameter, Mercury line filter with a center wavelength of 404.7 ± 2 nm, and a full width half max of 10 ± 2 nm.

Specifications

Technical Specs

Type
Mercury Line Filters
Center Wavelength
404.7 nm
Center Wavelength Tolerance
±2 nm

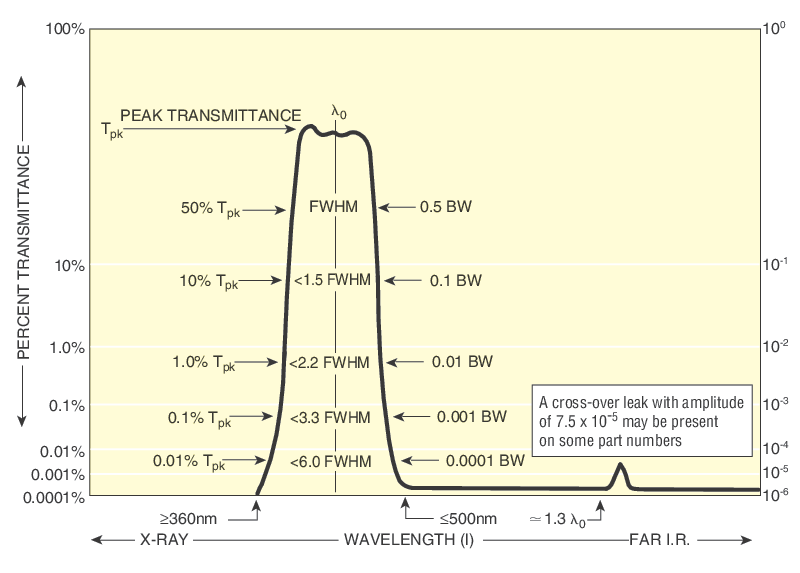

FWHM
10±2 nm
Effective Index of Refraction
2
Size
Ø25.4 mm
Size Tolerance
+0 mm/-0.8 mm

Thickness
0.20 in.
Surface Quality
80-50 scratch-dig
Minimum Peak Transmission
40%
Cleaning
See How to Clean Optics

Type
Mercury Line Filters
Center Wavelength
404.7 nm
Center Wavelength Tolerance
±2 nm
FWHM
10±2 nm
Effective Index of Refraction
2
Size
Ø25.4 mm
Size Tolerance
+0 mm/-0.8 mm

Thickness
0.20 in.
Surface Quality
80-50 scratch-dig
Minimum Peak Transmission
40%
Cleaning
See How to Clean Optics
