Optical Filter, Mercury Line, 25.4 mm, 577.0±2 nm Center, 10±2nm FWHM

Mercury Line Bandpass Filters

Mercury Line Bandpass Filters

Mercury Line Bandpass Filters

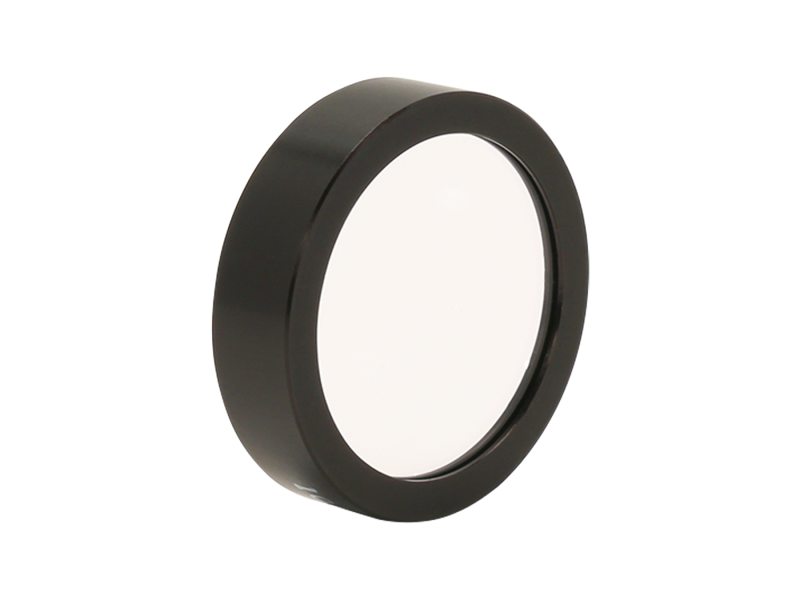

The 10MLF10-577 Mercury Line Bandpass Filter is a 1 inch (25.4 mm) diameter, Mercury line filter with a center wavelength of 577.0 ± 2 nm, and a full width half max of 10 ± 2 nm.

Specifications

Technical Specs

Type
Mercury Line Filters
Center Wavelength
577.0 nm
Center Wavelength Tolerance
±2 nm
FWHM
10±2 nm
Effective Index of Refraction
2

Size Tolerance
+0 mm/-0.8 mm
Thickness
0.25 in.
Surface Quality
80-50 scratch-dig
Minimum Peak Transmission
50%
Cleaning
See How to Clean Optics

Type
Mercury Line Filters
Center Wavelength
577.0 nm
Center Wavelength Tolerance
±2 nm
FWHM
10±2 nm
Effective Index of Refraction
2

Size Tolerance
+0 mm/-0.8 mm
Thickness
0.25 in.
Surface Quality
80-50 scratch-dig
Minimum Peak Transmission
50%
Cleaning
See How to Clean Optics

Resources & Downloads

3D Product Models

Other

10MLF10-577 RoHS Certificate(263 kB, PDF)
