Ultrafast Mirror, FemtoOptics, 25.4 mm, 45° AOI, HR 267 nm

The 10Q20UF.HR25 FemtoOptics Ultrafast Mirror is 25.4 mm in diameter and 6.35 mm thickness, λ/10 flatness, and 10-5 scratch-dig. Designed for 45 degrees angle of incidence to have high reflection at 267 nm for S and P polarizations, these mirrors are ideally suited for the distortion-free steering of sub 20 femtosecond deep UV pulses.

Specifications

Technical Specs

Wavelength Region
UV
Wavelength Range
250-285 nm
Diameter
25.4 mm
Material
N-BK7
Coating Code
UF.HR25
Surface Quality
10-5 scratch-dig
Surface Flatness
λ/10 at 633 nm
Wedge
< 5 arcminutes
Damage Threshold
0.75 J/cm², 4 ns pulses , 100 Hz at 266 nm
Angle of Incidence
45°

Clear Aperture
> central 85% of diameter
Back Surface
Commercial Polished

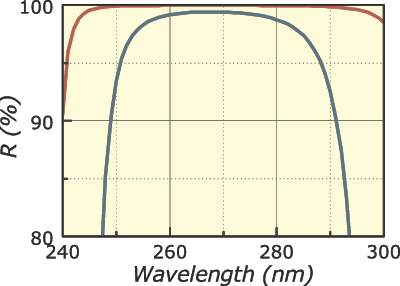

Reflectivity
R_S>99% @ 250-285 nm, R_P>98% @ 259-275 nm
Thickness
6.35 mm
Thickness Tolerance
±0.1 mm
Diameter Tolerance
+0/-0.1 mm
Cleaning
Non-abrasive method, methanol or isopropyl alcohol on lens tissue recommended
