Interferometer Flat, UVFS, 25.4 mm, λ/10, 10-5
Interferometer Flat, UVFS, 25.4 mm, λ/10, 10-5
Model: 10QB20
Product Series Overview

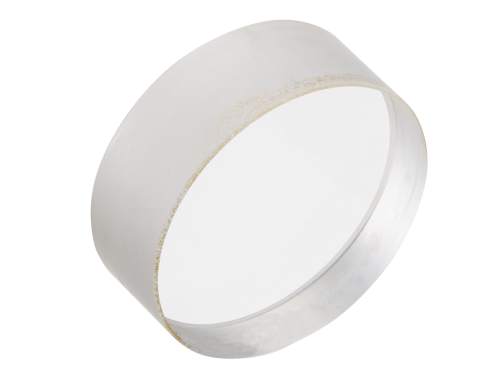

Interferometer FlatsThe 10QB20 Interferometer Flat is ideally suited for use in a laboratory interferometer or as a quality assurance standard. To ensure long-term thermal stability and mechanical accuracy. This 1 inch (25.4 mm) diameter, 9.52 mm thick optic is polished from select UV fused silica. In order to double the utility of the optic, both faces are polished to the same λ/10 figure. Internal fringe patterns are virtually eliminated by a 30 arc min wedge between faces. Surface interferograms, that allow error mapping, are shipped with each flat.
Resources & Downloads
3D Product Models
2D Product Drawings
WEDGEDWI-S(71.4 kB, PDF)
Other
10QB20 RoHS Certificate(264.9 kB, PDF) 10QB20_ROHS2-2021.pdf(279.6 kB, PDF)
