UV Aluminum Mirror Pack, Economy, Borofloat, 50.8 mm, λ/10, 250-600 nm, Qty 10
UV Aluminum Mirror Pack, Economy, Borofloat, 50.8 mm, λ/10, 250-600 nm, Qty 10
Model: 20D620AL.2-PK
Product Series Overview

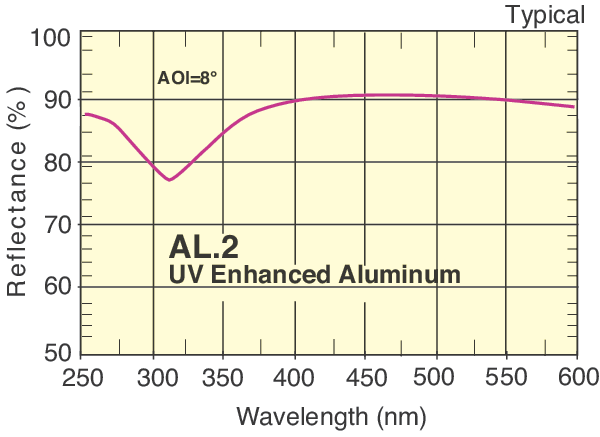

Economy Borofloat 33 Metallic MirrorsThis is a 10-pack of the 20D620AL.2 Economy UV Enhanced Aluminum Broadband Mirrors. By taking advantage of advanced polishing techniques and our high-volume manufacturing, these mirrors are truly cost effective. These 50.8 mm (2.0 inch) diameter mirrors are made from a 12.7 mm thick Borofloat® 33 substrate and are coated with the AL.2 aluminum coating. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. The AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with an average reflectivity greater than 90% from 250–600 nm. The Al.2 aluminum coating contains a durable dielectric overcoat to prevent oxidation of the metal. These mirrors have a λ/10 surface flatness and a 40-20 surface quality.
Resources & Downloads
3D Product Models
Other

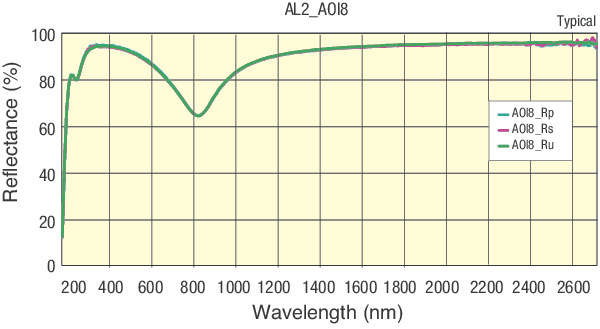

20D620AL.2-PK RoHS Certificate(705.6 kB, PDF) AL.2 Raw Data CH.xlsx(1.6 MB, XLSX)
