Aluminum Mirror Pack, Economy, Borofloat, 50.8 mm, λ/10, 450-700 nm, Qty 10
Aluminum Mirror Pack, Economy, Borofloat, 50.8 mm, λ/10, 450-700 nm, Qty 10
Model: 20D620ER.1-PK
Product Series Overview

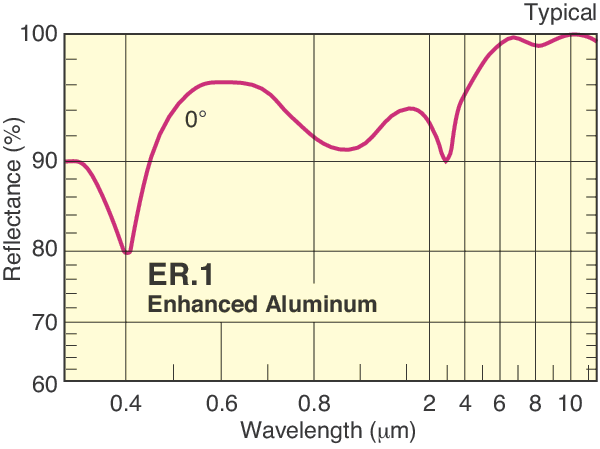

Economy Borofloat 33 Metallic MirrorsThis is a 10-pack of the 20D620ER.1 Economy Boradband Aluminum Mirrors. By taking advantage of advanced polishing techniques and our high-volume manufacturing, these mirrors are truly cost effective. These 50.8 mm (2.0 inch) diameter mirrors are made from a 12.7 mm thick Borofloat® 33 substrate and are coated with the ER.1 aluminum coating. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. The ER.1 enhanced aluminum coating may be used wherever a broadband visible and near infrared reflector is needed. A multilayer dielectric stack deposited over the aluminum film boosts reflectance and improves the durability of the coating. The 20D620ER.1 has an average reflectivity greater than 93% from 450–700 nm. These mirrors have a λ/10 surface flatness and a 40-20 surface quality.
Resources & Downloads
3D Product Models
Other
20D620ER.1-PK RoHS Certificate(709.3 kB, PDF) ER.1 Raw Data.xlsx(237.2 kB, XLSX)
