Gold Mirror Pack, Economy, Borofloat, 50.8 mm, λ/10, 650-20,000 nm, Qty 10
Gold Mirror Pack, Economy, Borofloat, 50.8 mm, λ/10, 650-20,000 nm, Qty 10
Model: 20D620ER.4-PK
Product Series Overview

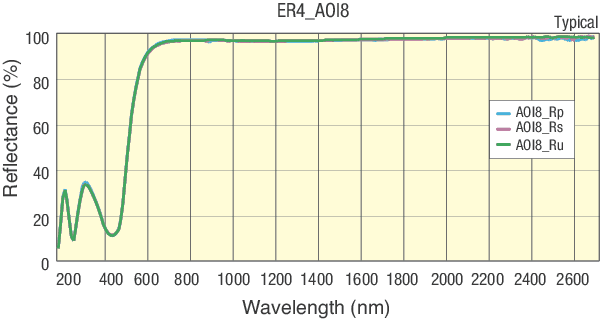

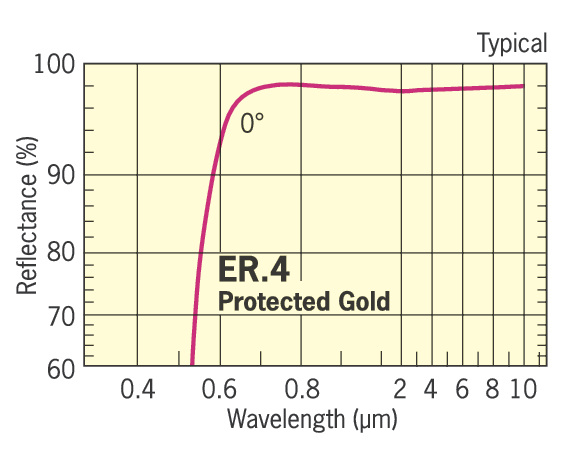

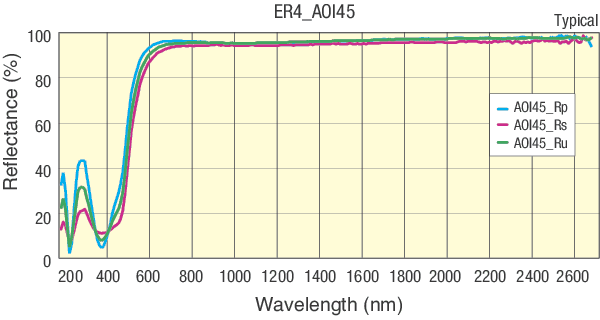

Economy Borofloat 33 Metallic MirrorsThis is a 10-pack of the 20D620ER.4 Economy Broadband Gold Mirrors. By taking advantage of advanced polishing techniques and our high-volume manufacturing, these mirrors are truly cost effective. These 50.8 mm (2.0 inch) diameter mirrors are made from 12.7 mm thick Borofloat® 33 substrate and are coated with the ER.4 gold coating. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. The ER.4 protected gold coating is ideal for applications requiring broadband reflectance in the near IR to the far IR. A multilayer dielectric overcoat provides protection to the gold from the environment. The 20D620ER.4 has an average reflectivity greater than 96% from 650–1700 nm and greater than 98% from 1.7–20 μm. These mirrors have a λ/10 surface flatness and a 40-20 surface quality.
Resources & Downloads
3D Product Models
Other
20D620ER.4-PK RoHS Certificate(707.9 kB, PDF) ER.4 Raw Data.xlsx(223.5 kB, XLSX)
