Optical Post, 14 in. Height, 1.5 in. Diameter, 1/4-20 Threads Both Ends

Dual Optical Rod Systems

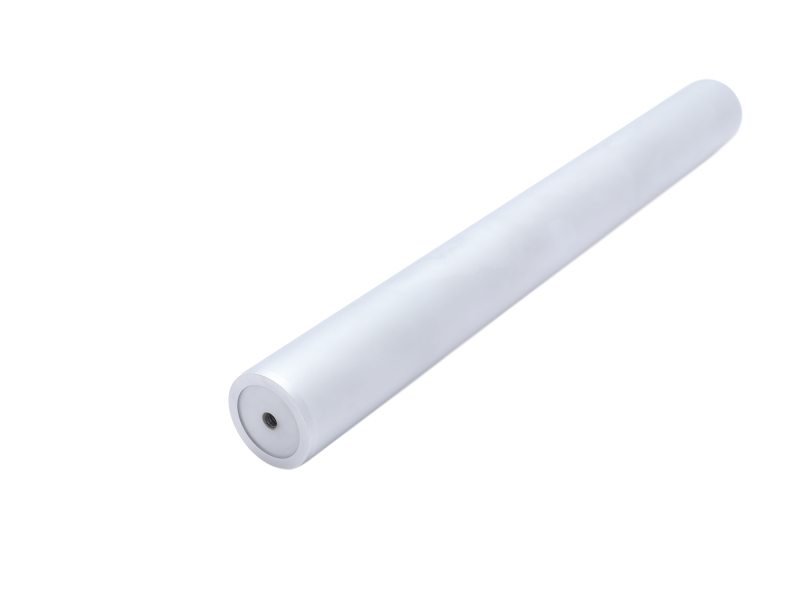

The 2998 Solid Steel Rod is 1.5 in. (38.1 mm) in diameter and 14.0 in. (355.6 mm) long. It has 1/4-20 (M6) threaded holes in both ends. It is designed to support a model 340-RC rod clamp.

Specifications

Technical Specs

Type
Optical Support Post
Height
355.6 mm

Diameter
38.1 mm

Type
Optical Support Post
Height
355.6 mm

Diameter
38.1 mm

Resources & Downloads

3D Product Models

2D Product Drawings

2998D.pdf(63.5 kB, PDF)

Other

2998 RoHS Certificate(689.8 kB, PDF)
