Angle Bracket, 45°, 1/4-20 (M6) Slots, 1 in. Spacing
Angle Bracket, 45°, 1/4-20 (M6) Slots, 1 in. Spacing
Model: 360-45
Product Series Overview

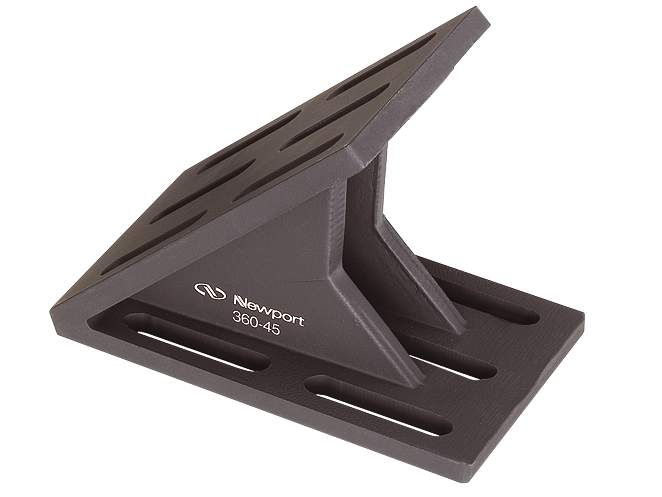

30, 45, 90 Degree Angle Brackets, 360 SeriesThe 360-45 Angle Bracket is a rigid 45° angled mounting plate with 1.0 inch separated slotted faces for use with either 1/4-20 or M6 threaded mounting bolts. The 45° angle is accurate to within ±2 arc min. Brackets may be combined to provide stable compound angle supports.
Slotted Bracket Faces for Universal Mounting
360 Series angle brackets feature slots on the mounting surfaces of each, as apposed to individual holes, separated by 1.0 in. for use with either 1/4-20 or M6 threaded mounting bolts. The M-360-90 features the same slots with 25 mm spacing for use with metric optical tables or breadboards.
Coarse Height Adjustable Platforms & Compound Angle Supports
Angle brackets may be combined to provide stable compound angle supports. Pairs of 360-30 or 360-45 brackets bolted together on hypotenuse faces provide coarse-adjustable height platforms of exceptional rigidity.
