Mounting Plate, Dual Rod Platform, 5 x 6 x 0.5 in., 1/4-20 Thread

Mounting Plates and Platforms

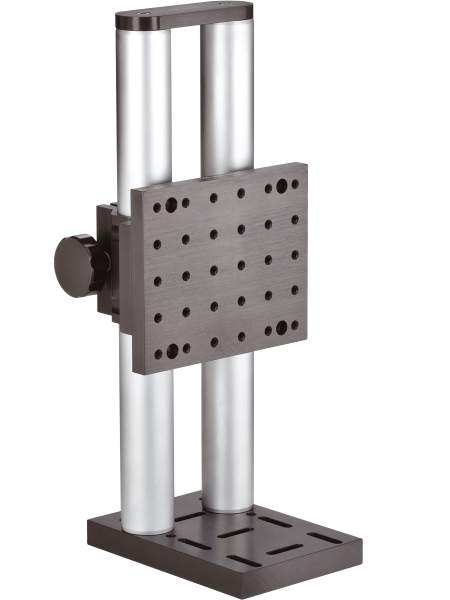

The 410-RCP Mounting Plate is designed to attach to the dual rod mounting assembly and features a standard pattern of tapped holes for mounting virtually any component. 1/4-20 Threaded and Clearance Holes.

Specifications

Technical Specs

Type
Mounting Plate
Height
12.7 mm
Length
152.4 mm
Width
127 mm

Thread Type
1/4-20
Material
Aluminum

Type
Mounting Plate
Height
12.7 mm
Length
152.4 mm
Width
127 mm

Thread Type
1/4-20
Material
Aluminum

Resources & Downloads

Drawings And Cad

410-RCP DWG-S(167.8 kB, PDF)

Other

410-RCP RoHS Certificate(687.5 kB, PDF)
