Focusing Lens Assembly, Secondary, 6 in. FL, F/3.3, 2 Inch Flange
Focusing Lens Assembly, Secondary, 6 in. FL, F/3.3, 2 Inch Flange
Model: 6219
Product Series Overview

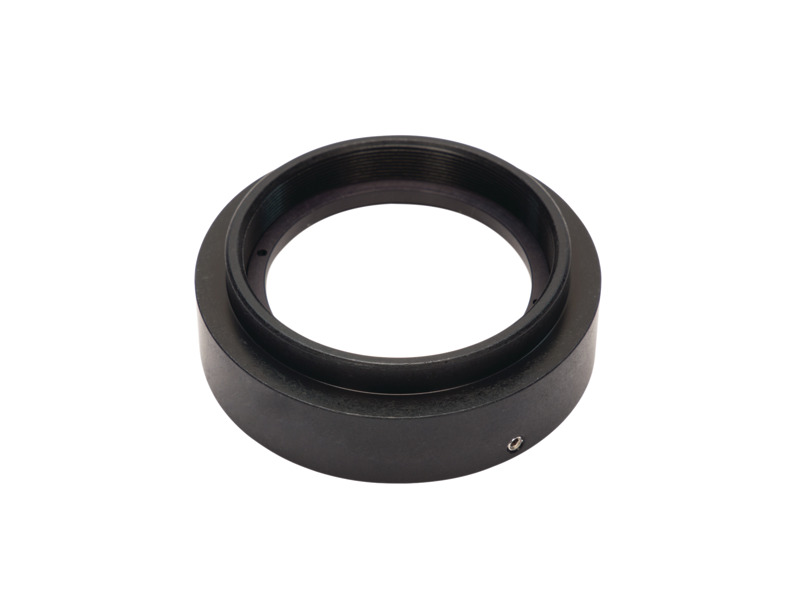

Focusing Lens AssembliesThe 6219 Secondary Focusing Lens Assembly for Light Sources is used to focus the collimated beam from a condenser and create an image of the arc or filament one focal length (6 inches) away. It consists of a 2 inch (50.8 mm) diameter fused silica plano convex lens and a 2 Inch Series flanged lens holder. It has a 1.8 in. (46 mm) clear aperture, and F/3.3. The model 6222 2 inch lens holder is also available separately if you need to mount a different focal length lens.
Resources & Downloads
3D Product Models
2D Product Drawings
LS-218b(546.4 kB, PDF)
