Mirror Mount, 38.1 mm Post Mounted, 50.8 mm Diameter, Micrometer

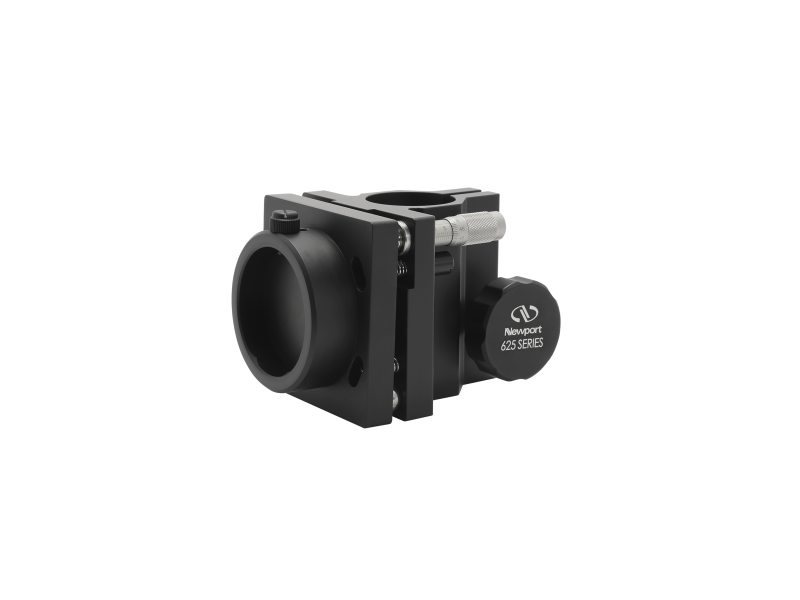

The 625-RC2-M Rod Mount Kinematic Mirror Mount is a rod-mountable device that provides vertical positioning flexibility and convenience for 50.8 mm diameter mirrors. It is compatible with Newport's rod models 40, 41, and 45 and incorporate the same stable kinematic design as our 600A Series Optical Mounts, with hardened kinematic contacts at all three support points. The 625-RC2 is configured with two SM Micrometers for a ±10° adjustment range.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
50.8 mm
Actuator Locks
No
Adjustment Screw Thread
50.8 TPI

Angular Range
±10°
Material
Aluminum
Drive Type
Micrometer

Mechanism
Kinematic
Optic Diameter
50.8 mm
Actuator Locks
No
Adjustment Screw Thread
50.8 TPI

Angular Range
±10°
Material
Aluminum
Drive Type
Micrometer

Resources & Downloads

3D Product Models

2D Product Drawings

625-RC2-DWG-S(90.9 kB, PDF)

Other

625-RC2-M RoHS Certificate(283.1 kB, PDF)
