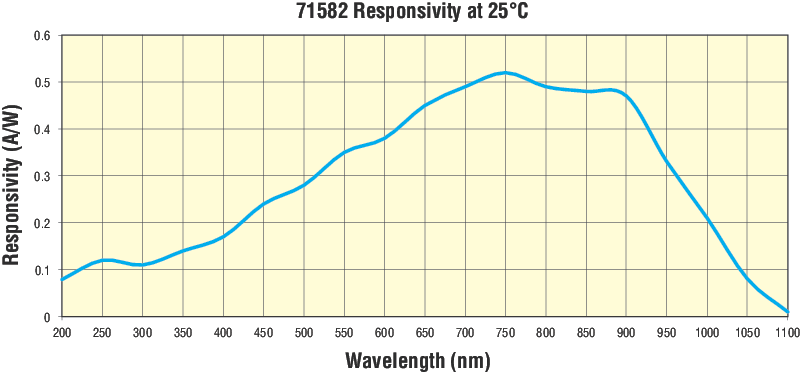

Optical Power Detector, Silicon, TE Cooled, Light Intensity Feedback

The 71582 is the detector head component of the LIK-LMP Light Intensity Controller Kit for use with the OPS Power Supply Series. It is also the detector head of the 68950 and 68951 Digital Exposure Systems for use with the Research Lamp Sources and Solar Simulators, respectively.

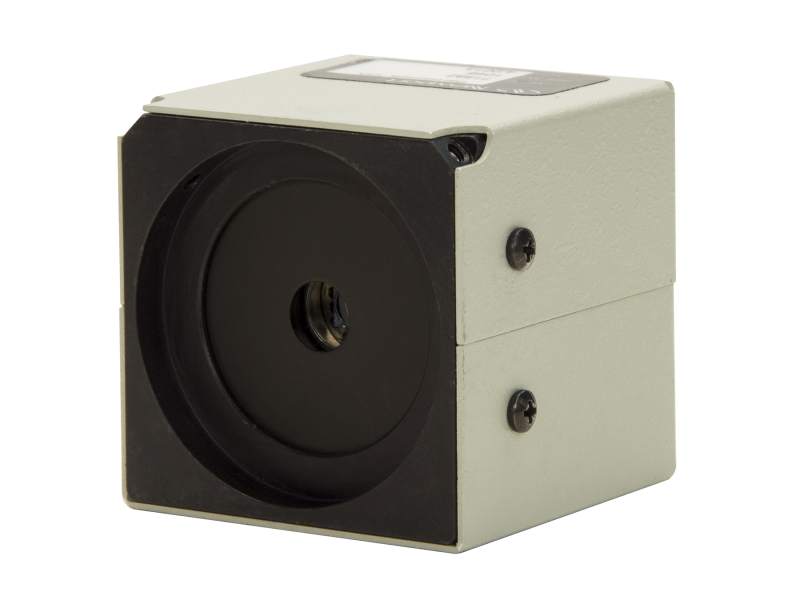

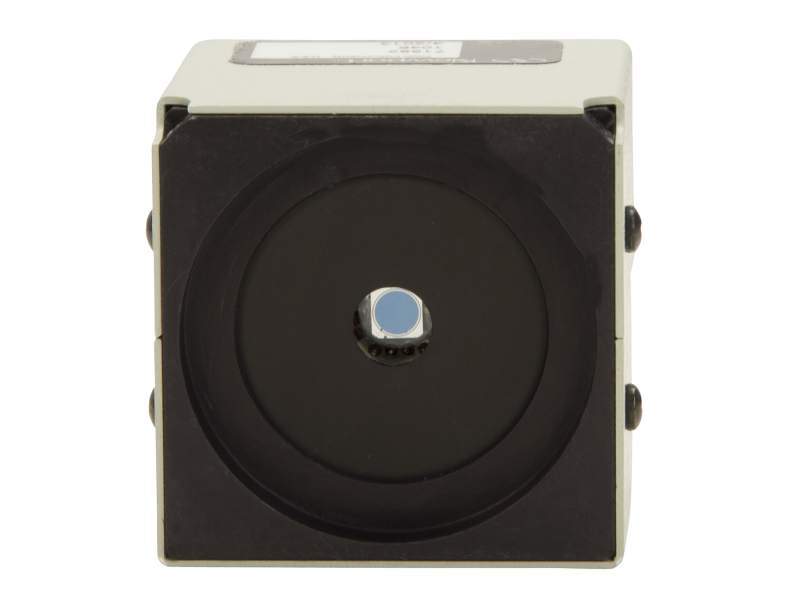

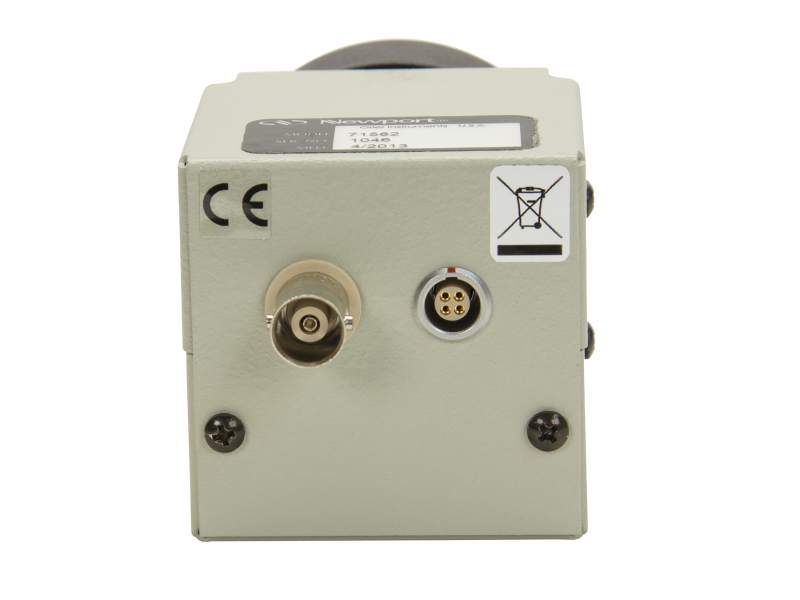

This TE-cooled flange mounted photodiode Si sensor provides light intensity feedback and can be used to stabilize light fluctuations. The 71582's housing is complete with a BNC connector for signal output and a four pin connector for monitoring and control of the TE cooler. The 1.5 inch female flange simplifies the integration to one of our many Oriel light sources and monochromators.

Specifications

Technical Specs

Use
LIK-LMP light intensity controller kit.
Detector Type
Flange Mount Photodiode
Detector Input
Free Space
Detector Material
Silicon
Spectral Range
200-1100 nm
Sensor Size
Ø5 mm
Type
TE Cooled Detector Head
Peak Responsivity
0.52 A/W @ 750 nm

Flange Type
1.5 Inch Series Female Flange
Temperature Sensor
Thermistor - 5.7 kΩ @ 0°C, 1.74 kΩ @ 25°C
Cut-off Frequency
10 MHz
Connector Type
BNC (signal and power), Cooler connector
Temperature Range
0 to 25°C
Amplified
No
Calibrated
No
TE Cooled
Yes

Use
LIK-LMP light intensity controller kit.
Detector Type
Flange Mount Photodiode
Detector Input
Free Space
Detector Material
Silicon
Spectral Range
200-1100 nm
Sensor Size
Ø5 mm
Type
TE Cooled Detector Head
Peak Responsivity
0.52 A/W @ 750 nm

Flange Type
1.5 Inch Series Female Flange
Temperature Sensor
Thermistor - 5.7 kΩ @ 0°C, 1.74 kΩ @ 25°C
Cut-off Frequency
10 MHz
Connector Type
BNC (signal and power), Cooler connector
Temperature Range
0 to 25°C
Amplified
No
Calibrated
No
TE Cooled
Yes

Resources & Downloads

3D Product Models

2D Product Drawings

71582 Drawing.pdf(178.1 kB, PDF)

Other

MKS EU ROHS3 - 71582 and DET-L Series.pdf(266 kB, PDF)
