Sorry, this product is no longer offered for sale. It was discontinued on May 25, 2017 For recommended replacements see spectroscopy-accessories. The recommended replacement product is .

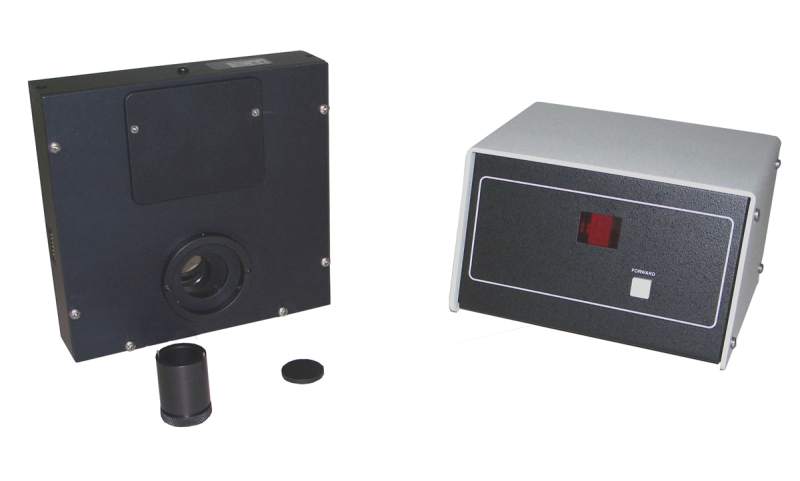

Motorized Filter Wheel for CS130, CS260 and MS260i
The 74010 Motorized Filter Wheel holds up to six 1-inch diameter [25.4 mm] filters in individual mounts. The filter wheel is powered and controlled by the CS130 or CS260 monochromator, or the MS260i spectrograph. A convenient access opening allows users to change filters without breaking apart the optical path. This allows the alignment to remain consistent even as the application needs evolve. The 74010 includes screw-in filter mounts, spanner wrenches for the mounts and filter retaining rings, a light blocking disk for dark measurements and a ribbon cable for connection to the spectroscopy instrument. The flange mounting provides a light-tight connection. It is suggested to rod mount the 74010 for additional support using the #1/4-20 mounting hole on the base of the unit. The 74010 is typically used to hold order sorting filters, which required when operating a monochromator or spectrograph to maintain spectral purity.
Resources & Downloads
3D Product Models
2D Product Drawings
Oriel Legacy 74010 Filter Wheel User Manual(544 kB, PDF)
