Laser Diode Mount, CS Bar, 61 W High Power, Temp Controlled

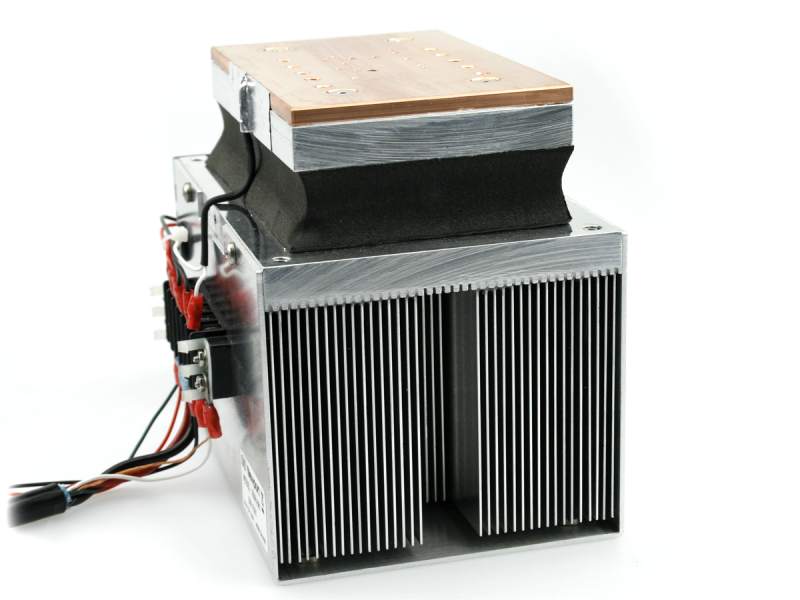

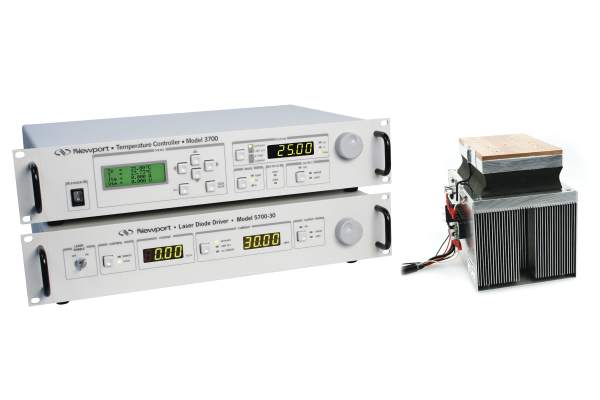

The 764H-061 high power laser diode mount can handle up to 61 watt thermal loads at 25°C ambient temperature with air cooling. The 764H series replaces the legacy 763 Series. The mount is thermoelectrically (TE) cooled, enabling finer wavelength tuning and power output stabilization. It is optimized with Newport’s model 3700 temperature controller to provide exceptional and rapid settling time, while maintaining the needed temperature regulation. The laser diodes are attached to a copper plate (top plate) provided with various hole patterns. Custom or other laser diode hole patterns can be easily created, with spare plates available for ordering.

A thermistor sensor is imbedded into the top plate for feedback loop temperature control. Electrical connections to a temperature controller are provided with a pigtailed cable attached to the mount. The cable is directly compatible with Models 3150 (obsolete) and 3700. It can also be compatible with Model 350B temperature controller, using the cable Model 300-02. A power supply is included for the fan. The mount also includes proper hardware kit (post and post holders) for table top experiments.

Due to the end user access of the hot plate (which can reach up to 80°C), this model is not CE compliant as a stand alone component.  Newport recommends utilizing a custom enclosure to limit end user access during operation for safety compliance, contact your sales representative for more information.
