Fixed Slit, 500 μm Width, 15 mm Height

Slits for Monochromators and Spectrographs

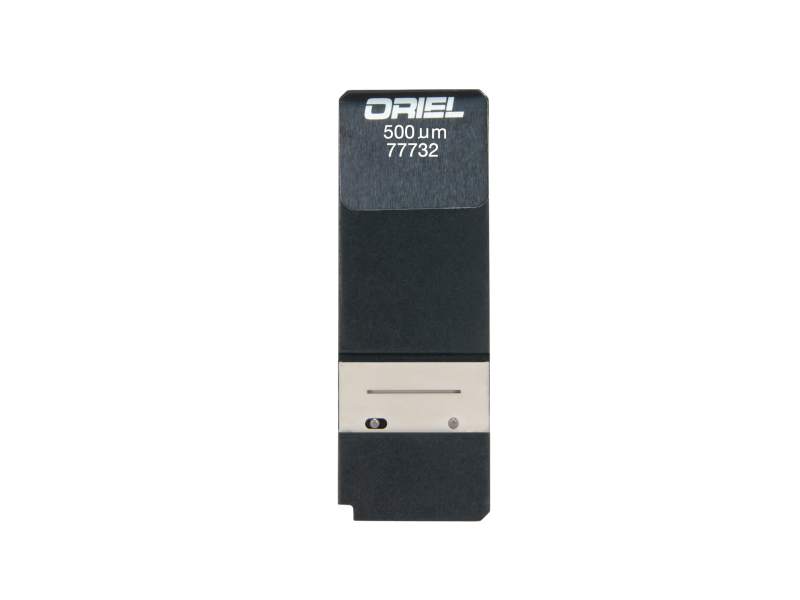

The 77732 Fixed Slit is the most economical choice if you only need a few slit sizes. This 500 μm width by 3 mm precision slit is fixed on a machined slide. You will need the 77294 Fixed Slit Holder to hold the slit and mate it to the monochromator.

Specifications

Technical Specs

Type
Fixed Slit

Slit Width
500 µm

Type
Fixed Slit

Slit Width
500 µm

Resources & Downloads

3D Product Models

2D Product Drawings

BPT-pg9-38b-L Drawing(84.7 kB, PDF)
