819M-DATV2 Photodiode Sensor Adaptor, 818 & 918D Sensors, 1.0 in. Port, 819C and 819D Spheres

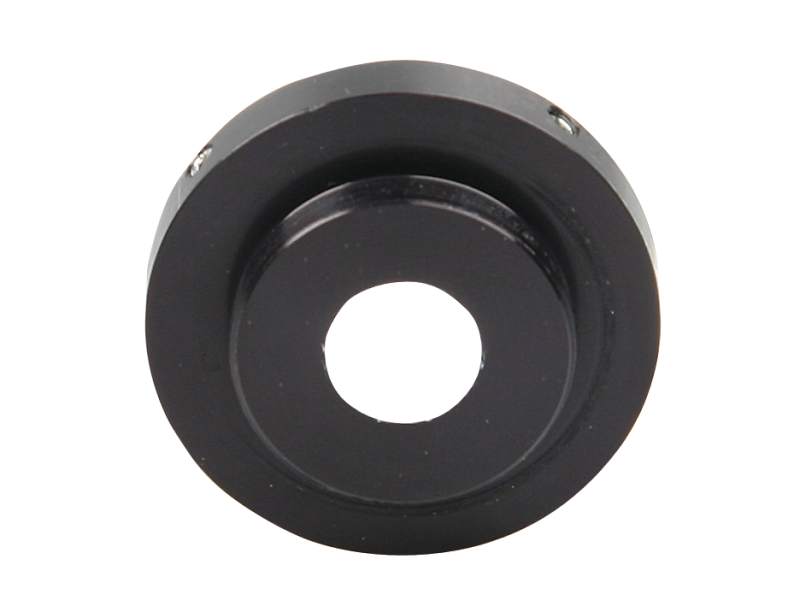

The 819M-DATV2 (P/N 7Z08366N) Detector Adaptor is used to attach an 818, 918, or 918D Series detector to the 1 inch port of an 819C/D Series integrating sphere. Inside has white diffuse barium sulfate coating. The small aperture limits exposure of the detector's aluminum surface to the sphere, while maximizing the signal throughput. Screw the adapter on the detector and then mount the assembly on the port.This model is compatible with all of Newport's detectors.

Specifications

Technical Specs

Type
Photodiode Sensor Adapter
Sphere Material
Barium Sulfate

Clear Aperture
Ø11 mm
Material
Black anodized aluminum

Type
Photodiode Sensor Adapter
Sphere Material
Barium Sulfate

Clear Aperture
Ø11 mm
Material
Black anodized aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

Integrating Sphere Fundamentals and Applications
7Z08366N-819M-DATV2 Dimensional Drawing.pdf(46.9 kB, PDF)
DS-111501 Intergrating Sphere Acces-2.pdf(1.2 MB, PDF)
