Motorized Tilt Aligner, XYZθxθy, 3 mm Linear, 8 Degree, M6 Thread

Multi-Axis Piezo Device Alignment Stages

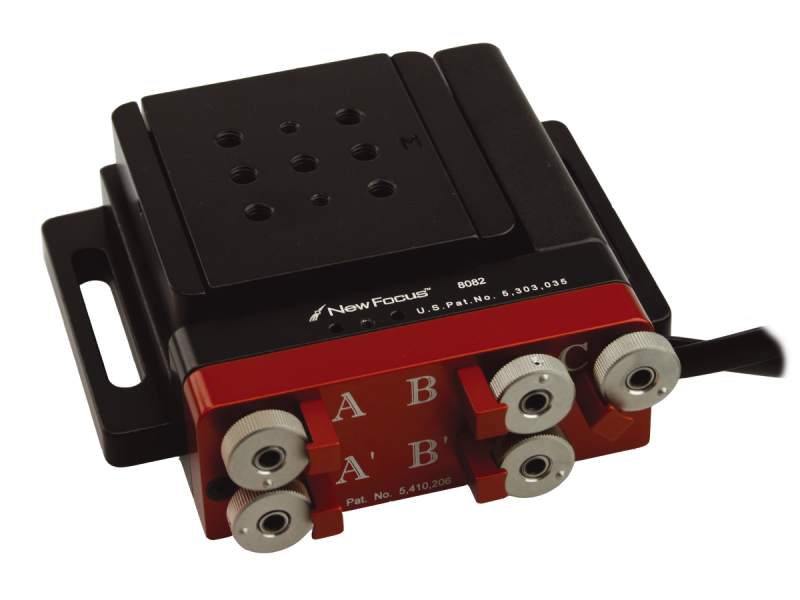

The 8082-M XYZθxθy Motorized Wide Five-Axis Tilt Aligner increases the utility of our popular kinematic stages by motorizing each of the axes. The addition of Picomotor™ actuators to each stage allows remote high-resolution (<30 nm) adjustment of various combinations of X, Y, Z, θx, and θy. Model 8082-M five-axis aligners are ideal for positioning modulators or isolators and for coupling light into waveguide devices. M4 and M6 tapped holes. Use with two 8725 multi axis adapters and two 8742 controller/drivers or one 8742-8-KIT to control all 5 axes (sold separately).

Specifications

Technical Specs

Axes of Travel
X, Y, Z, θx, θy
Mechanism
Kinematic
Drive Type
Picomotor
Travel Range
3 mm
Angular Range
8°
Load Capacity
13 N
Minimum Incremental Motion
<30 nm

Angular Resolution
θ_x, θ_y≤0.7 µrad
Connector Type
6-pin Connectors (2)
Operating Temperature
10 to 40°C
Thread Type
M4 and M6

Axes of Travel
X, Y, Z, θx, θy
Mechanism
Kinematic
Drive Type
Picomotor
Travel Range
3 mm
Angular Range
8°
Load Capacity
13 N
Minimum Incremental Motion
<30 nm

Angular Resolution
θ_x, θ_y≤0.7 µrad
Connector Type
6-pin Connectors (2)
Operating Temperature
10 to 40°C
Thread Type
M4 and M6

Resources & Downloads

Drawings And Cad

8082c-Drawing(140.9 kB, PDF)

Literature

Picomotor FAQ(3.1 MB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9082-MDevice Alignment Stage, Wide, Five-Axis, 3 mm Linear, 8° Angular, M4 and M6	METRIC			$653

Compatible

Description	Compatibility	Price
8742-4-KITPicomotor Controller Kit, Four-Axis	UNIVERSAL	$1,426
8742-8-KITPicomotor Controller Kit, Eight-Axis	UNIVERSAL	$2,731
8725Multi-Axis Adapter, Picomotor, 6 pin to 3x 4 pin	UNIVERSAL	$122
