Dielectric Mirror, Laser Line, Zerodur, 203.2 mm,λ/10, 1030-1090 nm
Dielectric Mirror, Laser Line, Zerodur, 203.2 mm,λ/10, 1030-1090 nm
Model: 80Z20DM.10
Product Series Overview

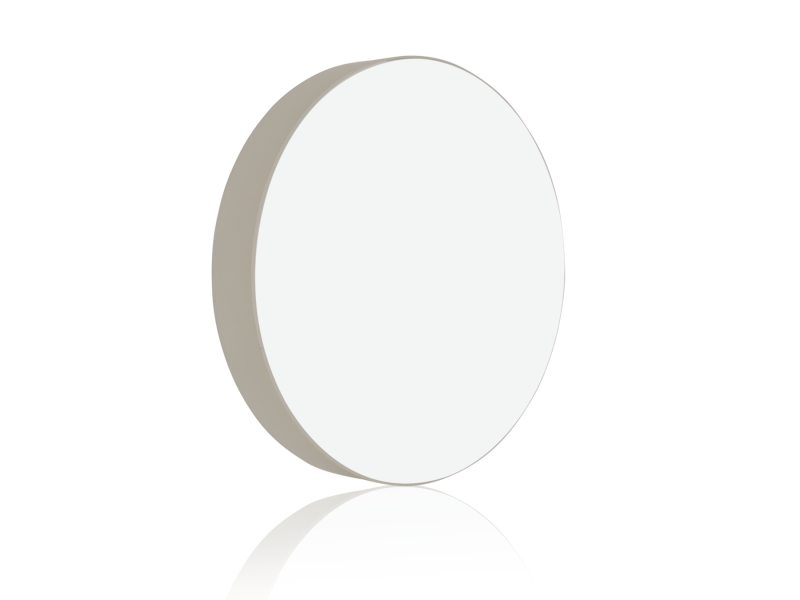

Zerodur Laser Line Dielectric MirrorsThe 80Z20DM.10 Laser Line Dielectric mirror is a highly efficient reflector optimized for a narrow 1030 to 1090 nm wavelength range. This 8 inch (203.2 mm) diameter mirror is made from a 29.5 mm thick Zerodur substrate. Zerodur is a glass-ceramic material where thermal expansion is nominally zero. This extra stability can be critical for applications requiring diffraction limited performance. The DM.10 coating is designed for use with low-power Nd:YAG lasers and has a center wavelength of 1064 nm. The coating achieves greater than 99% reflectance, from 0–45° angle of incidence, for any polarization. This multilayer dielectric coating is extremely durable, making it resistant to damage from repeated cleaning. This mirror has a λ/10 surface flatness and a 10-5 surface quality.
Resources & Downloads
3D Product Models
Other
80Z20DM.10 RoHS Certificate(264.8 kB, PDF) DM.10 Raw Data.xlsx(66.8 kB, XLSX)
