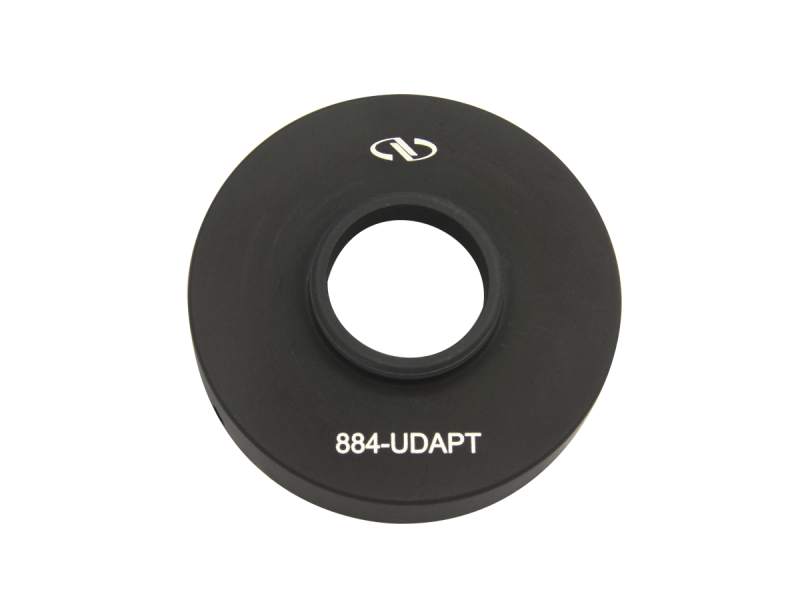

Lens Tube Adapter, 818 & 918D Series Sensors

The 884-UDAPT is an adapter with an Oriel's 1.5 inch series female flange and for Newport's 1 inch LensTube lens holders (1.035-40 thread).

Compatible with the following photodiode detectors: 818-xx-L, 818, 918D Series Low-Power Photodetectors, and legacy 918 Series detectors.

Specifications

Technical Specs

Type
Lens Tube Adapter
Thread Type
1.035-40 (Lens Tube) to 1.00-40 (Detector)

Flange Type
1.5 inch Series - Female
Material
Black anodized aluminum

Type
Lens Tube Adapter
Thread Type
1.035-40 (Lens Tube) to 1.00-40 (Detector)

Flange Type
1.5 inch Series - Female
Material
Black anodized aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

884-UDAPT(117.4 kB, PDF)
