High-Energy Pinhole, Molybdenum, 1 µm, 900 Series

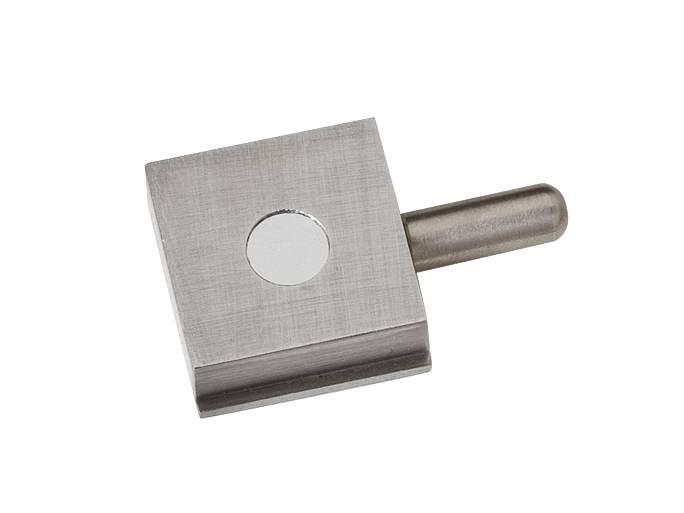

900 Series High Energy Mounted Molybdenum Pinholes

The 900PH-1.0 High Energy Pinhole Aperture is fabricated from ultra-thin molybdenum, a refractory alloy with high heat conductivity and melting point. This material exhibits almost no warping due to localized heating by the laser. A smooth 1 ± 0.5 μm diameter hole with extremely low ellipticity is produced using laser drilling techniques. These pinholes have a laser damage threshold of 75 MW/cm² CW and are suitable for pulsed laser use up to 700 mJ/cm². This version is mounted for use with our Model 900 spatial filter.

Specifications

Technical Specs

Type
High Energy Pinhole
Aperture Diameter
1 µm
Aperture Diameter Tolerance
±0.5 µm
Material
Molybdenum

Diameter Tolerance
±0.125 mm
Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
13 µm
Use
900 Series Spatial Filters

Type
High Energy Pinhole
Aperture Diameter
1 µm
Aperture Diameter Tolerance
±0.5 µm
Material
Molybdenum

Diameter Tolerance
±0.125 mm
Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
13 µm
Use
900 Series Spatial Filters
