XYZ Linear Stage, Crossed-Roller, 1 in. Travel, 8-32, 1/4-20

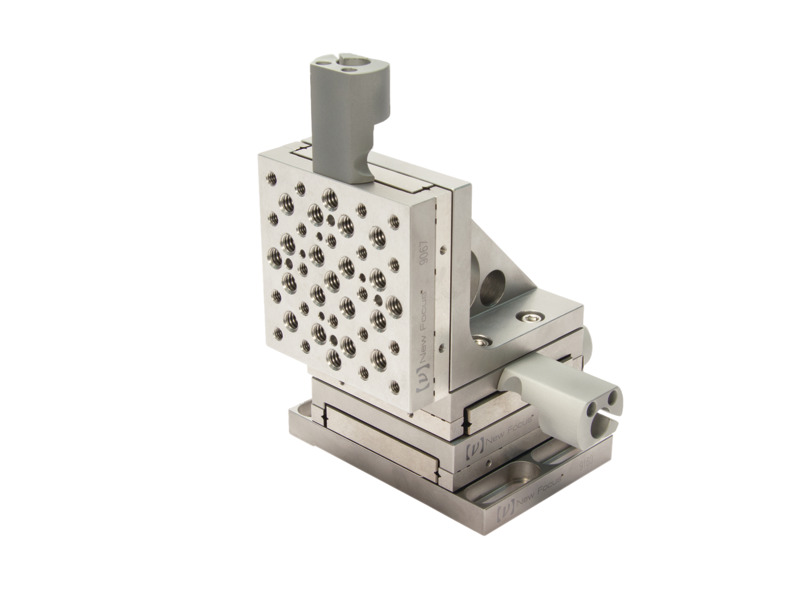

The 9067-XYZ-R Right-Handed Stainless Steel Crossed-Roller XYZ Translation Stage is a 1.0 inch travel linear translation stage that allows you to adjust the back actuator with your right hand and adjust the side actuator with your left hand. 9067 series stages feature a generous pattern of twenty 8-32 and twenty one 1/4-20 threaded mounting holes. Actuators are not included. Please see specifications for recommended actuators.
