Adjustment Screw, Hex, Braked, 12.7 mm Travel, Ball Tip, 1/4-80

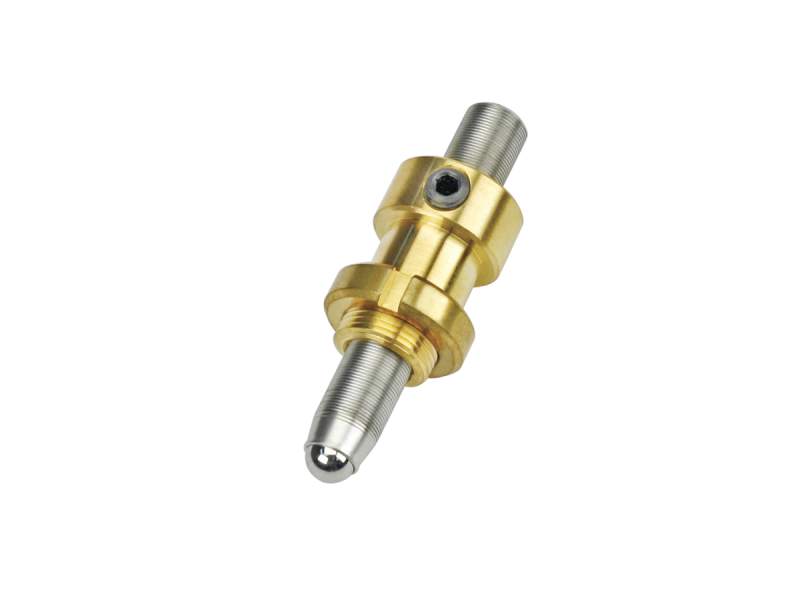

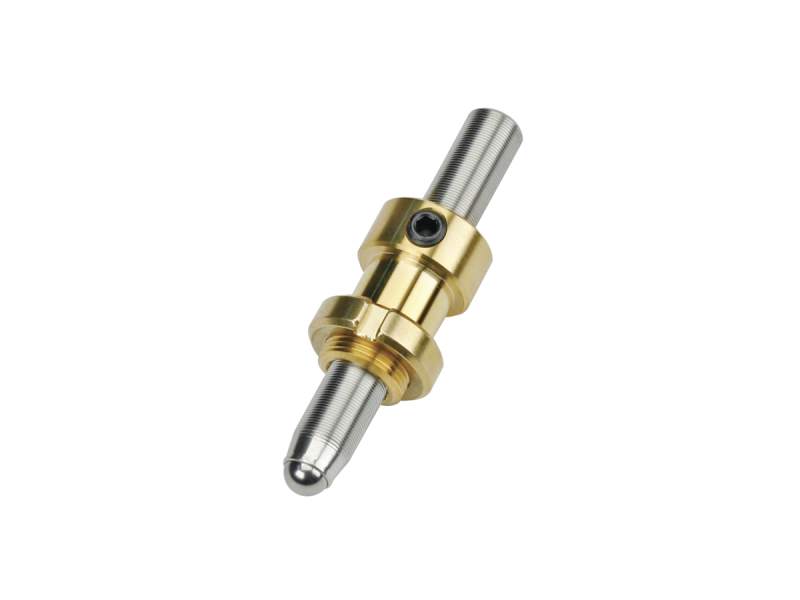

The 0.5 inch (12.7 mm) 9301-K Adjustment Screw provides smooth, wobble-free adjustment combined with exceptional long-term stability and low susceptibility to thermal variation. It is the same 1/4-80 precision screw used in our optic mounts and allows you to build your own mounts or positioners. In addition to a travel of 0.5 inch (12.7 mm); the screw has a ball tip, braked brass bushing, and is Hex-key adjusted.

Specifications

Technical Specs

Travel Range
12.7 mm
Adjustment Screw Thread
1/4-80
Drive Type
Hex
Axial Load Capacity
90 N
Lock
Side Lock

Tip Style
Ball
Sensitivity
0.88 µm

Travel Range
12.7 mm
Adjustment Screw Thread
1/4-80
Drive Type
Hex
Axial Load Capacity
90 N
Lock
Side Lock

Tip Style
Ball
Sensitivity
0.88 µm

Resources & Downloads

Drawings And Cad

99-930x(95.1 kB, PDF)

Other

MKS EU ROHS3 - 930x Series Adjustment Screws(733.2 kB, PDF)
REACH Supplier Statement - 930x Adjustment Screws(561 kB, PDF)
