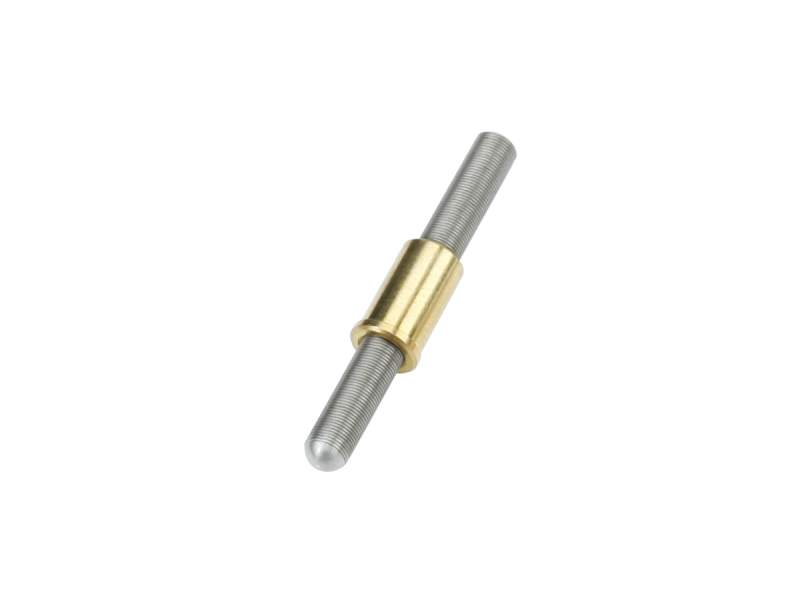

Adjustment Screw, Tiny, Hex, 9.6 mm Travel, Ball Tip, 6-100

The 9371-K Tiny Adjustment Screw is perfect if you need to build miniature mounts or positioners. This ball tip adjustment screw has 100 threads per inch and 9.6 mm of travel with Hex-key adjustment. Built with the same proprietary process as our 1/4-80 screw sets, these screws feature tight tolerances and no excess grease, resulting in actuators with very smooth movement, high precision, and exceptional long-term and thermal stability.
Resources & Downloads
Drawings And Cad
934x_937x(463.2 kB, PDF)
Other
910198-01 RoHS Certificate(0, PDF)
