ND Filter Rotator, 1.0 in. Hub, θXθY, Thumbscrew

The 946 Variable Neutral Density Filter Mount provides rotation as well as pitch/yaw adjustment for circular variable neutral density filters having a 1.0-in (25.4-mm) ID. AJS Screws provide angular adjustment of ±4° about each of two orthogonal axes to control the direction of the reflected beam from the face of the filter. An integrated pointer on the mount indicates the setting of the graduated scale on the attenuator.

Specifications

Technical Specs

Filter Shape
Round
Filter Diameter
127 mm
Maximum Thickness
25.4 mm
Number of Filters
1
Filter Type
Neutral Density

Mounting Threads
1/4-20
Material
Anodized Aluminum
Drive Type
Thumbscrew
Pitch and Yaw Adjustment Range
±4°
Filter Size Circular or Square
127 mm

Filter Shape
Round
Filter Diameter
127 mm
Maximum Thickness
25.4 mm
Number of Filters
1
Filter Type
Neutral Density

Mounting Threads
1/4-20
Material
Anodized Aluminum
Drive Type
Thumbscrew
Pitch and Yaw Adjustment Range
±4°
Filter Size Circular or Square
127 mm

Resources & Downloads

3D Product Models

2D Product Drawings

946-DWG-S(102.3 kB, PDF)

Related Products

Accessories

Description	Compatibility
Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	Learn More
Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	Learn More
Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	Learn More
Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	Learn More
Thread Adaptor Set, English	UNIVERSAL	Learn More

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		ND Filter Rotator, Compact, 1.0 in. Hub, 1/4-20	UNIVERSAL				Learn More
		ND Filter Rotator, 1.0 in. Hub, θXθY, Micrometer	UNIVERSAL				Learn More

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

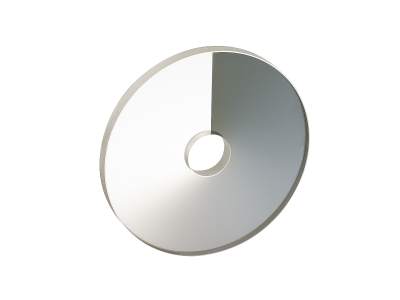

		ND Optical Filter, Circular Variable Metallic, N-BK7, 127 mm, 0.05-1.0 OD	UNIVERSAL				Learn More
