Mirror Mount, Classic, Center, 1.0 in., 3 Micrometers

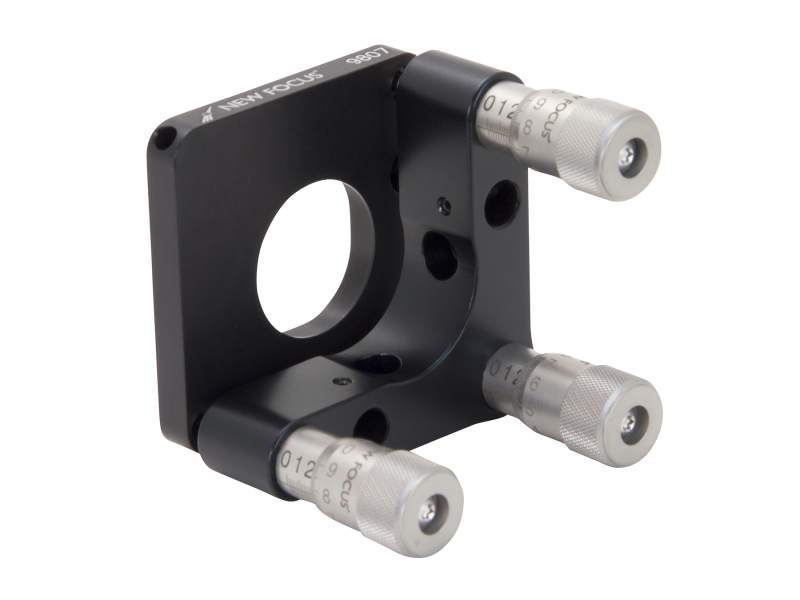

The 9807-C Classic Center Mirror Mount only looks like a conventional 1.0 inch (25.4 mm) diameter mount. The combination of our precision micrometers, sapphire seats, and 5/8 in. thick frames gives you superior stability and precise repeatable adjustment.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Micrometer
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Micrometer
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
