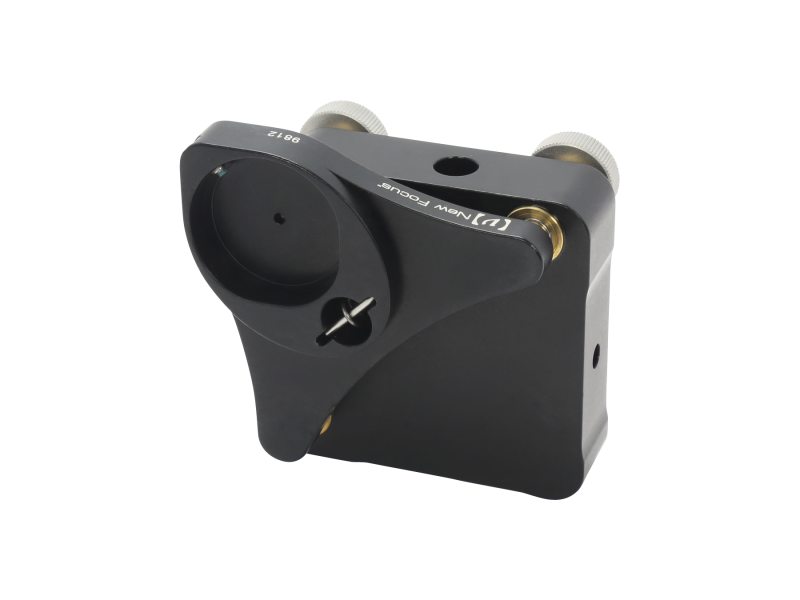

Mirror Mount, Gimbal, Corner, 1.0 in., 3 Knobs

The 9812 Gimbal Mirror Mount offers more stability and higher resolution than traditional non-kinematic gimbal mounts for holding 1.0 in. (25.4 mm) diameter optics. The rotation point in these knob actuated mounts is in line with the center of the mirror, giving you nearly pure tilt with the turn of just one screw. Use them in critical areas where you want high performance without the high cost. 8-32 (M4) through mounting holes.

Specifications

Technical Specs

Mechanism
Gimbal
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Knob
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec

Angular Range
±4°
Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
50.8 mm

Mechanism
Gimbal
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Knob
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec

Angular Range
±4°
Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
50.8 mm

Resources & Downloads

Drawings And Cad

9812f-Drawing(101.1 kB, PDF)
