Opti-Claw Mount, Fixed, 0.1 to 2.0 in. Diameter, 8-32

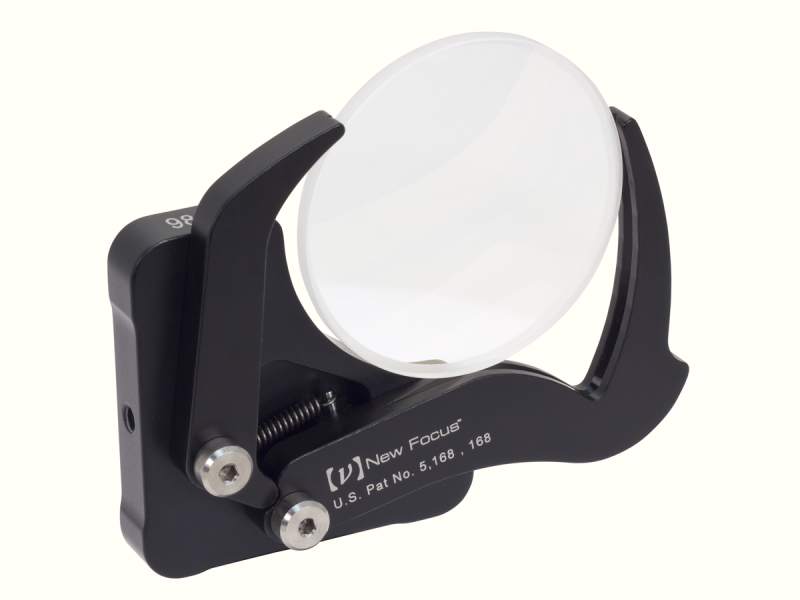

Opti-Claw Self-Centering Variable Size Lens Mounts

The 9832 Fixed Opti-Claw™ Mount is ideal for use with HeNe alignment lasers that come in cylindrical packages. It lets you remove and replace the laser quickly with the confidence that it will still be centered exactly where you want it.

Specifications

Technical Specs

Type
Variable Size Lens Mount
Optic Diameter
2.5-50.8 mm
Edge Thickness (T<sub>e</sub>)
3.00 to 8.87 mm
Optical Axis Height
50.8 mm
Use
Self-Centering Lens Mount

Adjustments
Fixed
Thread Type
8-32
Material
Anodized Aluminum

Type
Variable Size Lens Mount
Optic Diameter
2.5-50.8 mm
Edge Thickness (T<sub>e</sub>)
3.00 to 8.87 mm
Optical Axis Height
50.8 mm
Use
Self-Centering Lens Mount

Adjustments
Fixed
Thread Type
8-32
Material
Anodized Aluminum
