Opti-Claw Mount, Fixed, 0.1 to 2.0 in. Diameter, M4

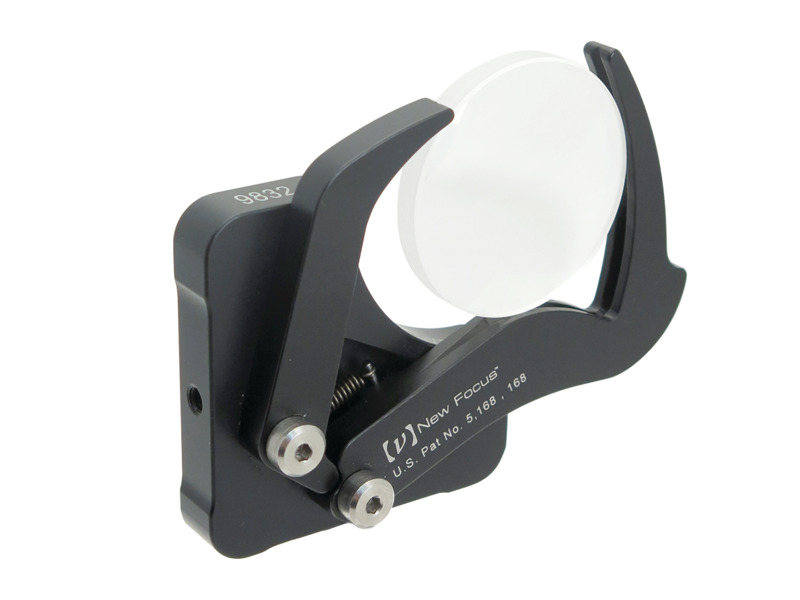

opti-claw self-centering lens mount shown with optical lens

Model: 9832-M

$146

Compare

Product Series Overview

Opti-Claw Self-Centering Variable Size Lens Mounts

The 9832-M Fixed Opti-Claw™ Mount is ideal for use with HeNe alignment lasers that come in cylindrical packages. It lets you remove and replace the laser quickly with the confidence that it will still be centered exactly where you want it.

Specifications

Technical Specs

Type
Variable Size Lens Mount
Optic Diameter
2.5-50.8 mm
Edge Thickness (T<sub>e</sub>)
3.00 to 8.87 mm
Optical Axis Height
50.8 mm
Use
Self-centering Lens Mount

Adjustments
Fixed
Thread Type
M4
Material
Anodized Aluminum

Type
Variable Size Lens Mount
Optic Diameter
2.5-50.8 mm
Edge Thickness (T<sub>e</sub>)
3.00 to 8.87 mm
Optical Axis Height
50.8 mm
Use
Self-centering Lens Mount

Adjustments
Fixed
Thread Type
M4
Material
Anodized Aluminum

Resources & Downloads

Drawings And Cad

20029832(140 kB, PDF)

Related Products

Accessories

Description	Compatibility	Price
KPX082AR.16Plano-Convex Lens, N-BK7, 25.4 mm Diameter, 50.2 mm EFL, 650-1000 nm	UNIVERSAL	$55
KPX049AR.14Plano-Convex Lens, N-BK7, 12.7 mm Diameter, 50.2 mm EFL, 430-700 nm	UNIVERSAL	$42
KBX034Bi-Convex Lens, N-BK7, 12.7 mm Diameter, 50.2 mm EFL, Uncoated	UNIVERSAL	$37
KBX142Bi-Convex Lens, N-BK7, 50.8 mm Diameter, 50.2 mm EFL, Uncoated	UNIVERSAL	$72
KPX049Plano-Convex Lens, N-BK7, 12.7 mm Diameter, 50.2 mm EFL, Uncoated	UNIVERSAL	$33

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9872-KOpti-Claw Mount, Tilting, Tiny, 0.06-0.63 in., 3 Allen-Key Adjustment	UNIVERSAL			$342
		9872-K-VOpti-Claw Mount, Tilting, Tiny, 0.06-0.63 in., 3 Allen-Key, Vacuum	UNIVERSAL			$339

Compatible

Description	Compatibility	Price
PS-2Optical Pedestal, 2.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	$31
PS-4Optical Pedestal, 4.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	$43
PS-0.5Optical Pedestal, 0.5 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	$27
PS-1Optical Pedestal, 1.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	$29
