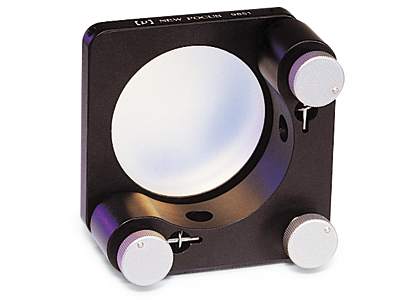

Mirror Mount, Classic, Center, 2.0 in., 3 Knobs

The 9855 Classic Center Mirror Mount only looks like a conventional 2.0 inch (50.8 mm) diameter mount. The combination of our proprietary precision knob actuated 1/4-80 screws and bushings, sapphire seats, and 5/8 in. thick frames gives you superior stability and precise repeatable adjustment.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
50.8 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
3.6 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
38.1 mm

Mechanism
Kinematic
Optic Diameter
50.8 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
3.6 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
38.1 mm

Resources & Downloads

Drawings And Cad

9855c-Drawing(94.5 kB, PDF)
