Motor Controller, Piezo, 2 Axis, Agilis™, Hand-held
Motor Controller, Piezo, 2 Axis, Agilis™, Hand-held
Model: AG-UC2
Product Series Overview

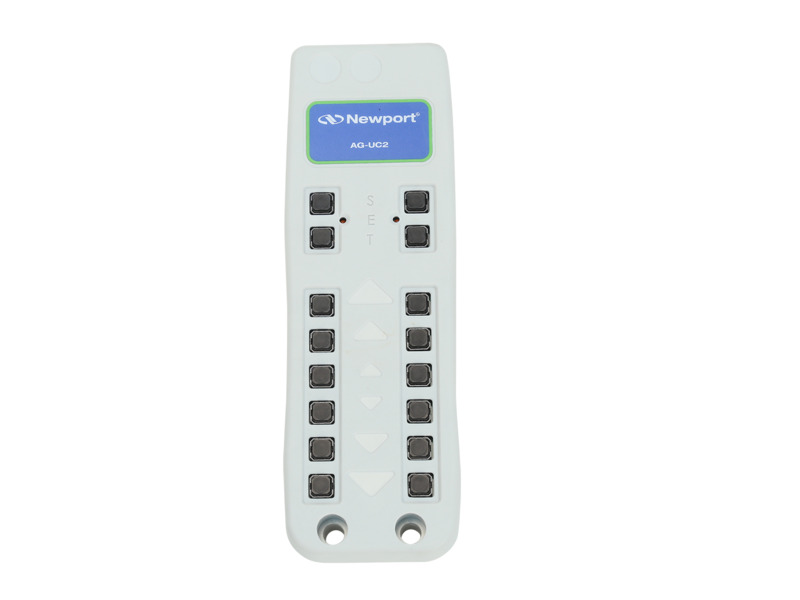

Agilis™ Piezo Motion ControllersThe AG-UC2 Agilis™ Controller provides USB computer control for two Agilis axes. The AG-UC2 controller features two sets of push buttons for each Agilis axis; one set for step size settings, and the other set for precise low speed adjustments and fast coarse motion. Power is supplied through the USB port and if not available, the
Compatible with Agilis Nanopositioners
Agilis motion controllers are used to drive Agilis nanopositioners. An Agilis optical mount is driven by 2 piezo motors whereas, an Agilis linear or rotation stage are driven by one piezo motor only.
Resources & Downloads
Software
AG-UC2-UC8-3.0.0(3.6 MB, ZIP)
Technical Notes
MKS GUI’s and Microsoft.NET Framework 3.5 SP1(1.4 MB, PDF)
Literature
Agilis™ Series Piezo Motor Driven Positioners(1.7 MB, PDF)
Drawings And Cad
AG-UC2 Drawing(182.7 kB, PDF)
Manuals
AG-UC2-UC8 Applet Manual(387.2 kB, PDF) AG-UC2-UC8 Command Library API Manual(226.3 kB, PDF) Agilis Piezo Motor Driven Components User Manual(2.6 MB, PDF)
