Cylindrical Lens, Plano-Convex, N-BK7, 25.4 x 12.7 mm, 19 mm, 1064 nm

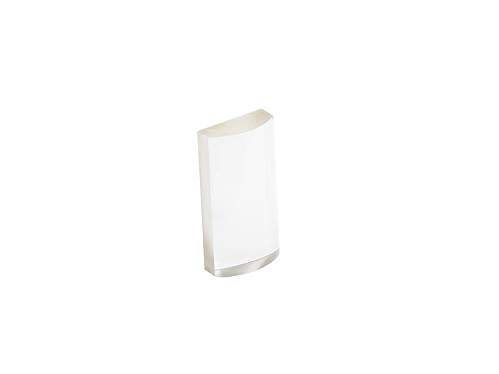

The CKX019AR.33 Plano-Convex Cylindrical Lens is a 1064 nm anti-reflection coated, 1 inch (25.4 mm) length by 1/2 inch (12.7 mm) width, N-BK7 plano-convex cylindrical lens with an effective focal length of 19.0 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's N-BK7 precision cylindrical lenses are manufactured from fine annealed optical glass and are polished to tight tolerances to ensure minimum wavefront distortion.

Specifications

Technical Specs

Lens Shape
Plano-Convex
Size
25.4 x 12.7 mm
Lens Material
Grade A N-BK7

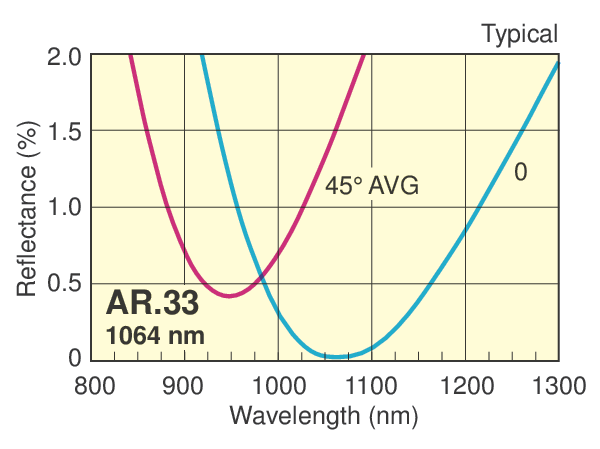

Coating Code
AR.33
Damage Threshold
12 J/cm² for 10 ns pulses, 10 Hz @ 1064 nm
Effective Focal Length (EFL)
19.0 mm

Lens Shape
Plano-Convex
Size
25.4 x 12.7 mm
Lens Material
Grade A N-BK7

Coating Code
AR.33
Damage Threshold
12 J/cm² for 10 ns pulses, 10 Hz @ 1064 nm
Effective Focal Length (EFL)
19.0 mm

Resources & Downloads

3D Product Models

2D Product Drawings

PLANOCO1 VEX-S(89.6 kB, PDF)

Other

CKX019AR.33 RoHS Certificate(266.7 kB, PDF)
CKX019AR.33_ROHS2-2021.pdf(281.8 kB, PDF)
AR.33 Raw Data.xlsx(57.4 kB, XLSX)

Related Products

Compatible

Description	Compatibility
Cylindrical Lens Holder, 1.0 in x 0.25-0.50 in., 0.75 in. Clear Aperture	UNIVERSAL	Learn More
Cylindrical Lens Mount, Adjustable, 50.8 mm Max, +/- 5 Deg., 2 arcs sec	UNIVERSAL	Learn More
Cylindrical Lens Adapter, 12.7 mm Lens, CYM-2R Mount	UNIVERSAL	Learn More
