Cylindrical Lens, Plano-Convex, N-BK7, 50.8x25.4mm, 75.6mm, 650-1000nm

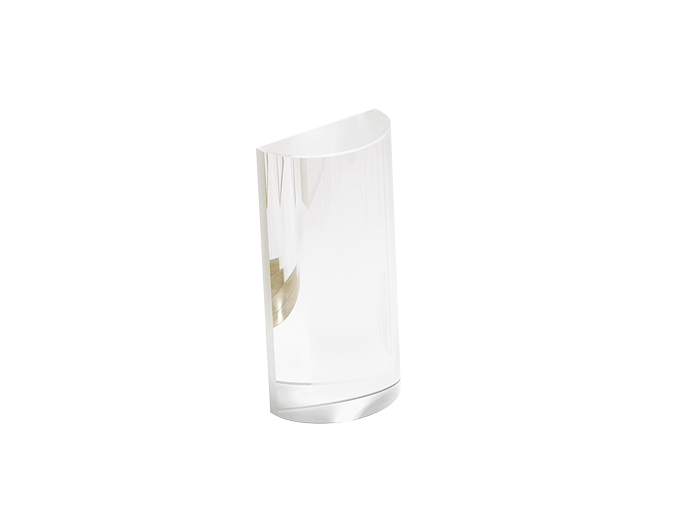

The CKX075AR.16 Plano-Convex Cylindrical Lens is a 650 to 1000 nm anti-reflection coated, 2 inch (50.8 mm) length by 1 inch (25.4 mm) width, N-BK7 plano-convex cylindrical lens with an effective focal length of 75.6 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's N-BK7 precision cylindrical lenses are manufactured from fine annealed optical glass and are polished to tight tolerances to ensure minimum wavefront distortion.

Specifications

Technical Specs

Lens Shape
Plano-Convex
Size
50.8 x 25.4 mm
Lens Material
Grade A N-BK7

Coating Code

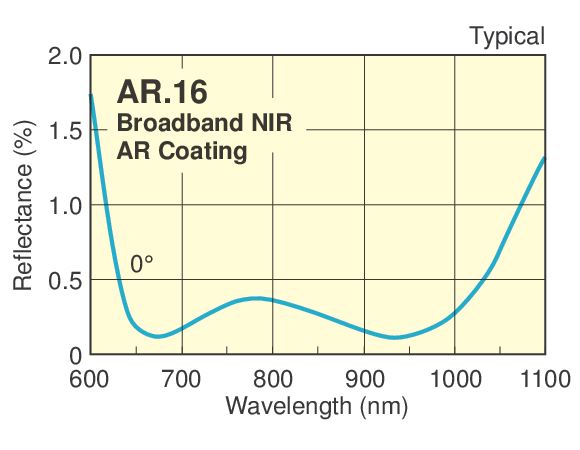

AR.16
Effective Focal Length (EFL)
75.6 mm

Lens Shape
Plano-Convex
Size
50.8 x 25.4 mm
Lens Material
Grade A N-BK7

Coating Code
AR.16
Effective Focal Length (EFL)
75.6 mm

Resources & Downloads

3D Product Models

2D Product Drawings

PLANOCO1 VEX-S(89.6 kB, PDF)

Other

CKX075AR.16 RoHS Certificate(707.9 kB, PDF)
AR.16 Raw Data.xlsx(100.4 kB, XLSX)
