Cylindrical Lens, Plano-Convex, N-BK7, 2x2 in., 150 mm EFL, 430-700 nm

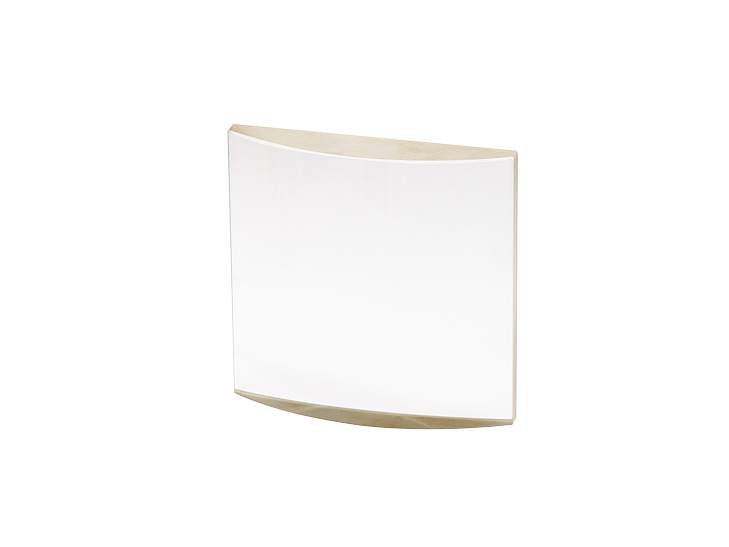

The CKX150AR.14 Plano-Convex Cylindrical Lens is a 430 to 700 nm anti-reflection coated, 2 inch (50.8 mm) length by 2 inch (50.8 mm) width, N-BK7 plano-convex cylindrical lens with an effective focal length of 150 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's N-BK7 precision cylindrical lenses are manufactured from fine annealed optical glass and are polished to tight tolerances to ensure minimum wavefront distortion.

Specifications

Technical Specs

Lens Shape
Plano-Convex
Size
50.8 x 50.8 mm
Lens Material
Grade A N-BK7

Coating Code
AR.14
Effective Focal Length (EFL)
150 mm

Lens Shape
Plano-Convex
Size
50.8 x 50.8 mm
Lens Material
Grade A N-BK7

Coating Code
AR.14
Effective Focal Length (EFL)
150 mm

Resources & Downloads

3D Product Models

2D Product Drawings

PLANOCO1 VEX-S(89.6 kB, PDF)

Other

CKX150AR.14 RoHS Certificate(706.4 kB, PDF)
AR.14 Raw Data.xlsx(63.9 kB, XLSX)
