Pneumatic Isolator, Compact, Re-leveling Valve

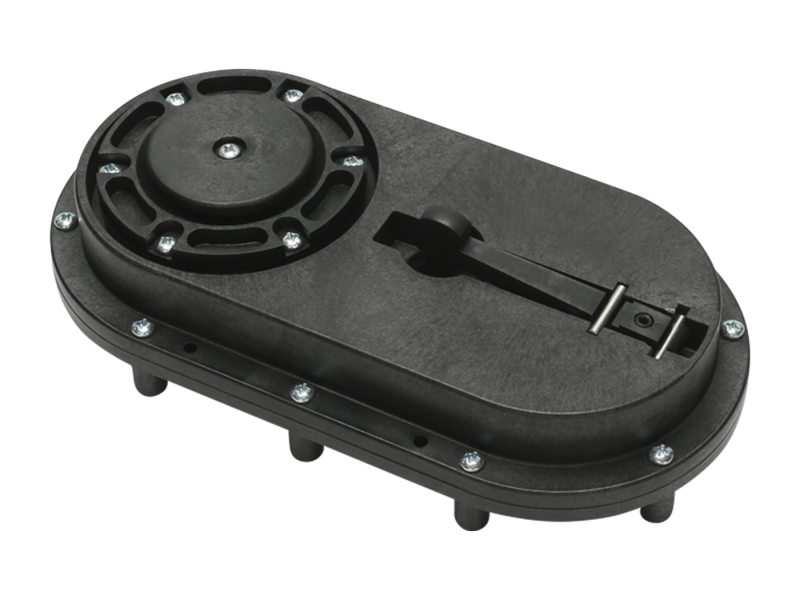

Self-Leveling Compact Pneumatic Vibration Isolators

The CM-225-1V Isolator with Re-leveling Valve provides excellent pneumatic vibration isolation. Featuring our unique Stabilizer™ hybrid chamber design, this isolators offers the largest compliance volume, and therefore the best vertical isolation of any compact isolators. The extremely low profile design allows integration into a large variety of small machines. Automatic releveling maintains platform stability.

Specifications

Technical Specs

Isolator Height
50.8 mm
Load Capacity per Isolator
27 kg
Number of Isolators
1
Self Centering
Yes
Releveling Accuracy
0.6 mm

Horizontal Amplification at Resonance
10 dB
Horizontal Isolation, 10 Hz
80%
Vertical Isolation, Resonance
3.2 Hz
Vertical Amplification at Resonance
12 dB
Vertical Isolation, 10 Hz
84%

Isolator Height
50.8 mm
Load Capacity per Isolator
27 kg
Number of Isolators
1
Self Centering
Yes
Releveling Accuracy
0.6 mm

Horizontal Amplification at Resonance
10 dB
Horizontal Isolation, 10 Hz
80%
Vertical Isolation, Resonance
3.2 Hz
Vertical Amplification at Resonance
12 dB
Vertical Isolation, 10 Hz
84%

Resources & Downloads

3D Product Models

2D Product Drawings

CM-225 Isolator Set User Manual(941.2 kB, PDF)
CM-225 OUTLINE.PDF(84 kB, PDF)
