Motorized Rotation Stage, NSR1, CONEX-PP Integrated Controller

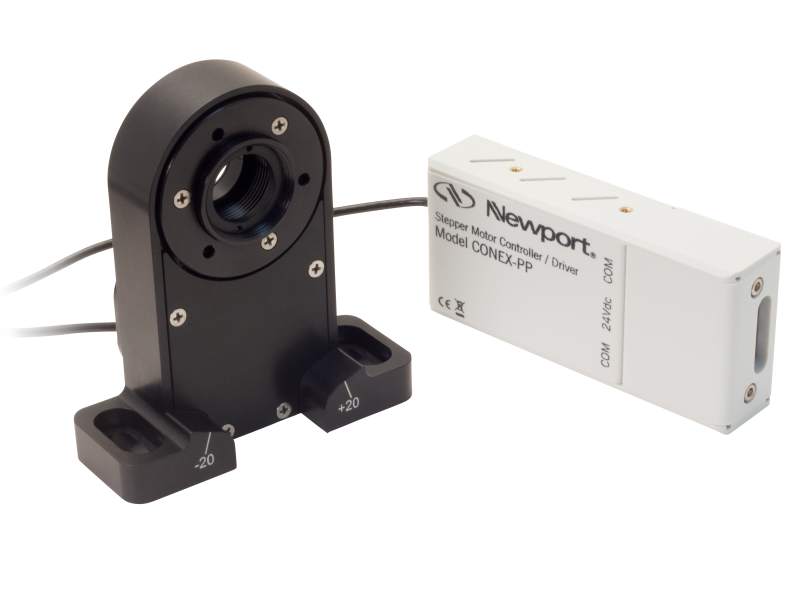

The CONEX-NSR1, with an integrated iPP stepper motor controller, is an economical and versatile rotary positioner for use as a filter wheel, a neutral density rotator, polarized optic rotator, flipper mount or basic rotation platform. It features a 1" threaded aperture, retaining ring and internal reference surface for 25.4 mm optics, a 1-° step resolution, and up to 120 °/s speed. The NSR1 serves as a base unit, and can be used as a rotator for 25.4 mm optics.

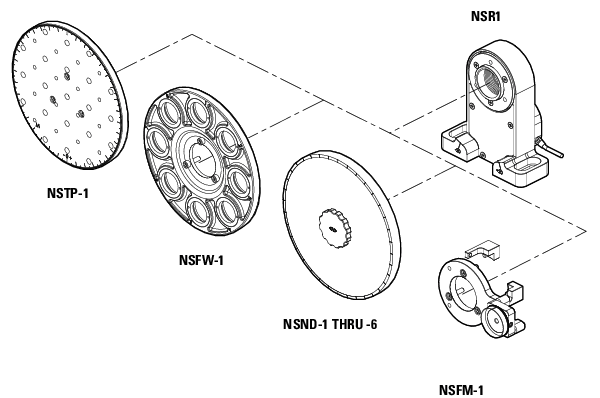

Accessories are also available, including a filter wheel (NSFW-1) for up to 8 - 25.4 mm optics, a 127 mm diameter variable ND filter adapter (NSND), a tooling plate (NSTP-1) featuring an array of tapped holes, and a unique set of adapters to transform the rotator into a motorized flipper mount (NSFM-1).
Power Supply and cables are sold separately.
Compact Controller and Stage
In terms of size, the CONEX-CC controller is comparable to a deck of cards. Depending on the motor type, up to 3 CONEX-PP or 6 CONEX-CC can fit on a CONEX-BP baseplate. Both controller and stage are compact and ideal for space-confined or access-limited applications. Newport also offers the stand alone version of these Low Profile Rotation Stages.
Scalable Architecture
Out-of-the-box Control
Linear Amplifier in DC Units
Resources & Downloads
3D Product Models
2D Product Drawings
CONEX-PP Utility Installer Win32.zip(1.7 MB, ZIP) CONEX-NSR1 Rotator User Manual(449.7 kB, PDF) CONEX-NSR1.pdf(486.3 kB, PDF) CONEX-PP Command Interface User Manual(779.7 kB, PDF) CONEX-PP Controller GUI User Manual(2.4 MB, PDF) CONEX Datasheet(4.2 MB, PDF) Conex-PP EU Declaration of Conformity(284 kB, PDF) CONEX-NSR1_FW_GUI(289.9 MB, ZIP)
