Diffraction Grating Mount, Top Portion of DGM-1 Only

$Adjustable Diffraction Grating Mounts$

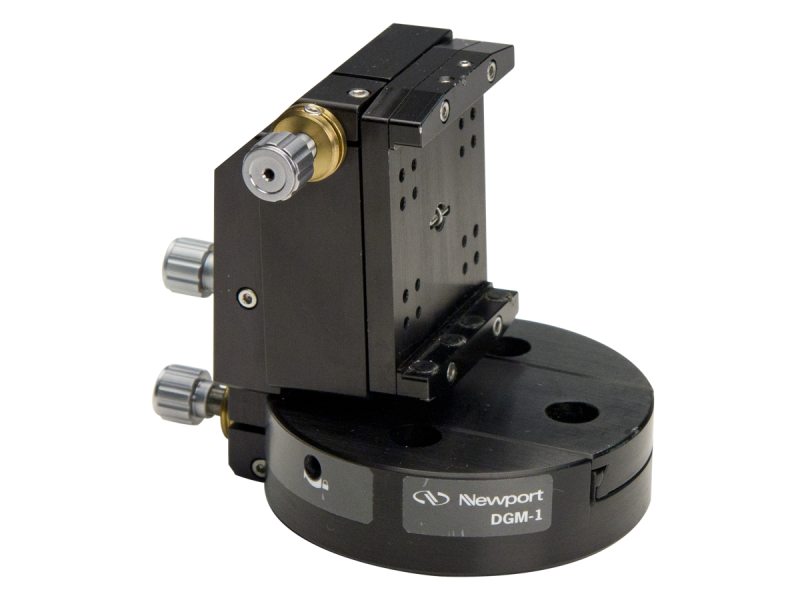

The DGM-1T is the top portion of the original DGM-1 Diffraction Grating Mount. This mount is capable of holding square or rectangular gratings having dimensions of 12.5 mm, 25 mm, or 50 mm, all 6-mm-thick. Its unique clamp design allows the grating to always sit at the center of rotation of the mount. Angular adjustments pitch and roll are driven by two precision 100-TPI threaded screws, and a linear x-axis adjustment allows the grating to be located right at the center of yaw rotation. All adjustments are lockable.

Specifications

Technical Specs

Adjustments
z, θx, θz
Drive Type
Knob, locking
Adjustment Screw Thread
100 TPI
Travel Range
10 mm
Angular Range
±4°
Tip/Tilt Sensitivity
4 arc sec
Rotation Sensitivity
10 arc sec

Optic Thickness
6 mm
Optical Axis Height
61.6 mm
Material
Anodized Aluminum
Weight
0.69 kg

Adjustments
z, θx, θz
Drive Type
Knob, locking
Adjustment Screw Thread
100 TPI
Travel Range
10 mm
Angular Range
±4°
Tip/Tilt Sensitivity
4 arc sec
Rotation Sensitivity
10 arc sec

Optic Thickness
6 mm
Optical Axis Height
61.6 mm
Material
Anodized Aluminum
Weight
0.69 kg
