F-O Collimator, FC, 780 nm, 3.0 mm beam

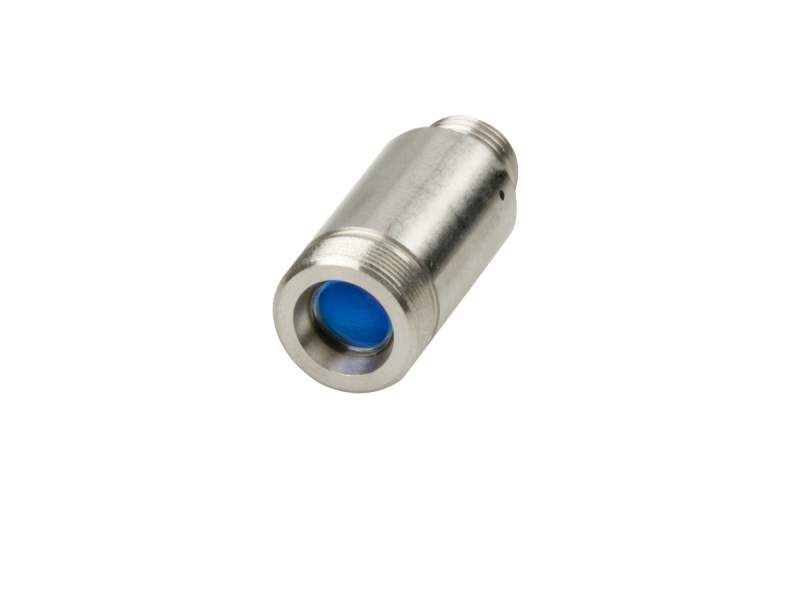

The F-C5-F3-780 Collimator is designed to accept FC type fiber connectors and collimate a 780 nm beam exiting a single-mode fiber to a 3.0 mm beam. Conversely, a laser beam can be launched into the assembly to focus the beam into a connected fiber. High quality, broadband AR coated, glass aspheric lenses are used for low insertion loss and beam sizes only limited by diffraction.

Optical Post Mounting

For post mounting these F-C5 Series collimators, we suggest the model CLH-11 adaptor which fits into most 1 inch mirror mounts.

Applications

Applications include laser beam delivery systems, as well as coupling the output of a fiber into a detector. Applications of pairs of collimators include beam expansion systems for lab applications, as well as fiber-to-fiber coupling in compact components.

Specifications

Technical Specs

Type
Fiber-optic Collimator
Fiber Type
Singlemode
Fiber Connector
FC/PC
Operating Wavelength
780 nm
Maximum Insertion Loss
0.25 dB
Typical Insertion Loss
0.15 dB
Operating Temperature
-20 to 60°C
Operating Humidity
0.85
Maximum Back Reflection
-65 dB
Beam Diameter (1/e<sup>2</sup>)
3.0 mm

Back Focal Length
13.91 mm
Clear Aperture
5.0 mm
Effective Focal Length (EFL)
15.29 mm
Length
25.30 mm
Numeric Aperture
0.3
Polarization Dependent Loss, Maximum
0.03 @ 1550 nm
Polarization Dependent Loss, Typical
0.01 @ 1550 nm

Type
Fiber-optic Collimator
Fiber Type
Singlemode
Fiber Connector
FC/PC
Operating Wavelength
780 nm
Maximum Insertion Loss
0.25 dB
Typical Insertion Loss
0.15 dB
Operating Temperature
-20 to 60°C
Operating Humidity
0.85
Maximum Back Reflection
-65 dB
Beam Diameter (1/e<sup>2</sup>)
3.0 mm

Back Focal Length
13.91 mm
Clear Aperture
5.0 mm
Effective Focal Length (EFL)
15.29 mm
Length
25.30 mm
Numeric Aperture
0.3
Polarization Dependent Loss, Maximum
0.03 @ 1550 nm
Polarization Dependent Loss, Typical
0.01 @ 1550 nm

Resources & Downloads

Drawings And Cad

F-C5-F3 series(464.3 kB, PDF)
