Polarization Insensitive Circulator, 1550 nm, SMF-28 Fiber, FC/PC

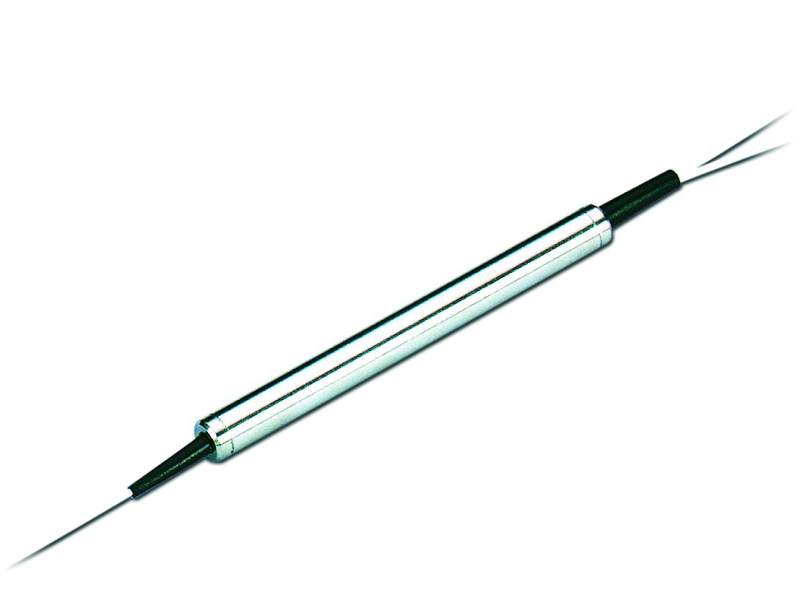

Polarization Insensitive Fiber Circulators

The F-CIR-15-P-FP Polarization Insensitive Circulator features low insertion loss, high isolation, low Polarization Dependent Loss (PDL), and is the perfect solution for add/drop filters, erbium-doped fiber amplifiers (EDFA), dispersion compensation, bi-directional communication, and optical R & D at 1550 nm. This version has SMF-28 fiber pigtails with FC/APC connectors.

Specifications

Technical Specs

Type
Polarization Insensitive Circulator
Fiber Type
Singlemode
Fiber Connector
FC/PC
Operating Wavelength
1550 nm
Typical Insertion Loss
0.6 dB
Return Loss
50 dB
Bandwidth
± 20 nm
Maximum Optical Power
300 mW

Package Type
Pigtailed
Dimensions
5.6 D x 59.9 L mm
Isolation/Cross Talk
50 dB
Polarization Mode Dispersion
0.1 ps
Polarization Dependent Loss, Typical
0.1 dB @ 23°C
Operating Temperature
0 to 70°C

Type
Polarization Insensitive Circulator
Fiber Type
Singlemode
Fiber Connector
FC/PC
Operating Wavelength
1550 nm
Typical Insertion Loss
0.6 dB
Return Loss
50 dB
Bandwidth
± 20 nm
Maximum Optical Power
300 mW

Package Type
Pigtailed
Dimensions
5.6 D x 59.9 L mm
Isolation/Cross Talk
50 dB
Polarization Mode Dispersion
0.1 ps
Polarization Dependent Loss, Typical
0.1 dB @ 23°C
Operating Temperature
0 to 70°C

Resources & Downloads

Drawings And Cad

Fiber Optic Circulator Drawing.pdf(141.6 kB, PDF)
