Optical Fiber Coupler, Broadband, 1 x 2, 50/50, 1310/1550nm, FC/APC

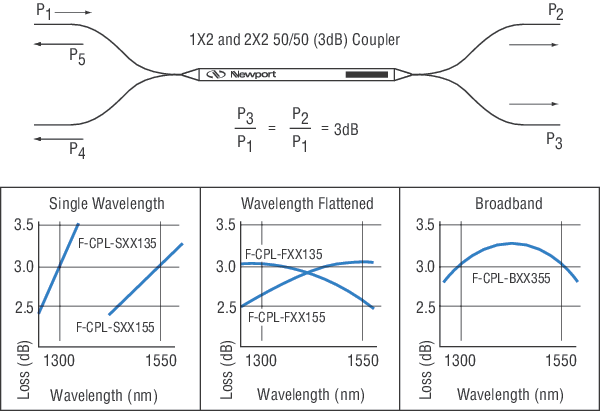

The F-CPL-B12355-FCAPC Broadband Coupler is operational over both the 1310 and 1550 nm windows. This 1x2 coupler has a 50/50 (3 dB) coupling ratio. It has FC/APC connectors. It can be used with the 918D-IS-1 fiber optic detector and 22494-01S FC connector (which is included with the 918D-IS-1). See the Related Products tab for more information.

Specifications

Technical Specs

Type
1x2 Broadband Coupler
Fiber Type
Singlemode, 1 meter long each side
Coupling Ratio
50%/50%
Fiber Connector
FC/APC
Operating Wavelength
1310/1550 nm
Maximum Insertion Loss
3.6 dB
Return Loss
55 dB

Bandwidth
±40 nm
Excess Loss, Typical
0.08 dB
Operating Temperature
-40 to 85°C
Package Type
B
Operating Humidity
90–95%

Type
1x2 Broadband Coupler
Fiber Type
Singlemode, 1 meter long each side
Coupling Ratio
50%/50%
Fiber Connector
FC/APC
Operating Wavelength
1310/1550 nm
Maximum Insertion Loss
3.6 dB
Return Loss
55 dB

Bandwidth
±40 nm
Excess Loss, Typical
0.08 dB
Operating Temperature
-40 to 85°C
Package Type
B
Operating Humidity
90–95%

Resources & Downloads

Technical Notes

Fiber Optics: How Fused Fiber Optic Couplers Work - Technical Note(185.2 kB, PDF)

Drawings And Cad

Fiber pkg -B-S(71 kB, PDF)
