Fiber Optic Coupler, Multimode, 1 x 8, 850 nm

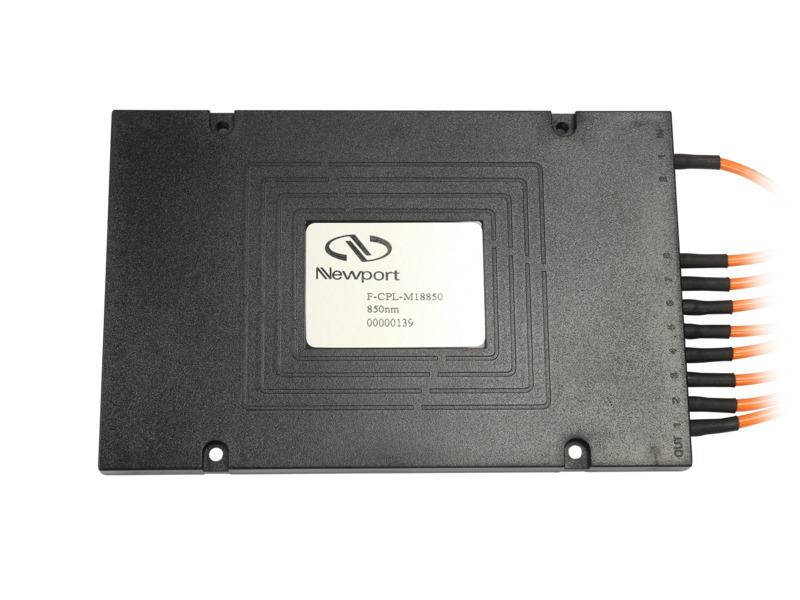

The F-CPL-M18850 Multimode Fiber Optic Coupler allows bi-directional coupling and can be used to either split or combine signals. It uses 62.5/125 μm fiber, with low insertion loss and a 850 nm operating wavelength. This 1x8 coupler features a fully ruggedized black plastic housing with 1 meter long, 3 mm PVC covered pigtails, unterminated. Use Option Code 96 when ordering with connectors. Option Code 96 refers to the Coupler Model Code.

Specifications

Technical Specs

Type
1x8 Multimode Coupler
Fiber Type
Multimode
Fiber Connector
Bare Fiber
Operating Wavelength
850 nm
Maximum Insertion Loss
11.5 dB
Operating Temperature
-40 to 85°C

Option Code
96
Package Type
D
Operating Humidity
90–95%
Uniformity
1.3 dB

Type
1x8 Multimode Coupler
Fiber Type
Multimode
Fiber Connector
Bare Fiber
Operating Wavelength
850 nm
Maximum Insertion Loss
11.5 dB
Operating Temperature
-40 to 85°C

Option Code
96
Package Type
D
Operating Humidity
90–95%
Uniformity
1.3 dB

Resources & Downloads

Drawings And Cad

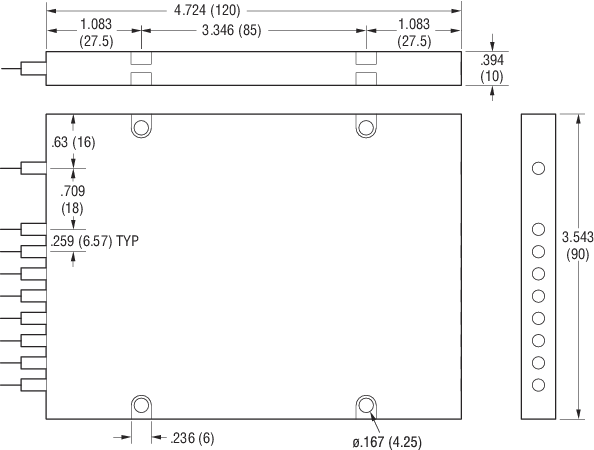

Fiber pkg -D-S(78.9 kB, PDF)
