IR Sensor Card, High Power, 950-1150 & 1480-1650 nm, 23 x 23 mm

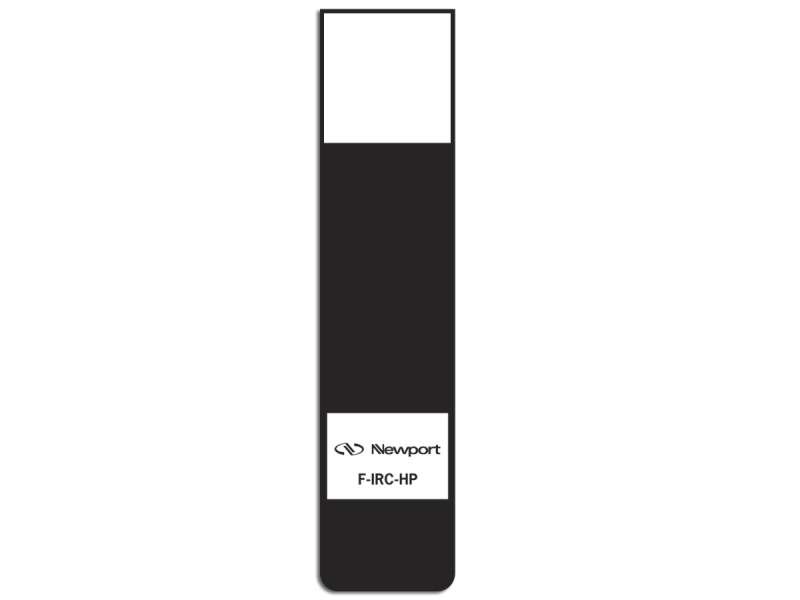

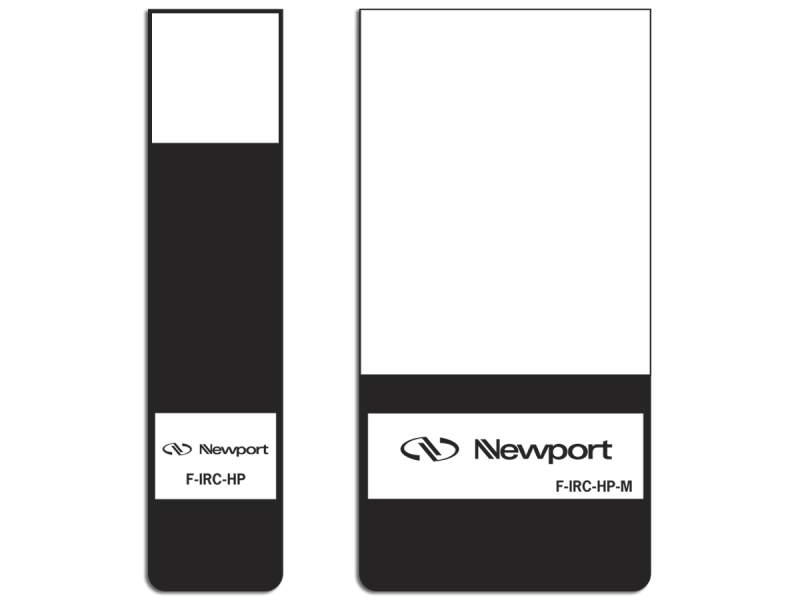

High Power Infrared and Ultraviolet Sensor Cards

Easily locate and analyze high power laser sources up to 10KW/cm² in the infrared (IR) with this High Power Sensor Card. Converts IR radiation from 950-1150 nm and 1480 - 1650 nm to visible green light. Suitable for CW and pulsed lasers with a 23 x 23 mm Sensor Area. Typical applications include sensing and locating Excimer lasers, Gas lasers and ND:YAG lasers at fundamental and harmonic frequencies.

Specifications

Technical Specs

Type
IR Sensor Card
Material
Metal Substrate
Wavelength Range
950-1150 and 1480-1650 nm
Sensor Size
23 x 23 mm

Minimum Detectable Power
<100mW/cm² (1064nm, CW),
<1mJ/cm² (1064nm, pulsed)
Emission
Green, 530 nm
Dimensions
25 x 100 mm

Type
IR Sensor Card
Material
Metal Substrate
Wavelength Range
950-1150 and 1480-1650 nm
Sensor Size
23 x 23 mm

Minimum Detectable Power
<100mW/cm² (1064nm, CW),
<1mJ/cm² (1064nm, pulsed)
Emission
Green, 530 nm
Dimensions
25 x 100 mm
