Objective Lens, Laser Diode, Aspheric, 0.30 NA, 6.16 mm, 430-1550 nm
Objective Lens, Laser Diode, Aspheric, 0.30 NA, 6.16 mm, 430-1550 nm
Model: F-LA17
Product Series Overview

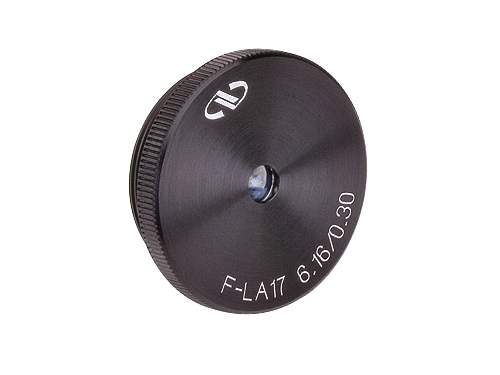

Laser Diode Objective LensesThe F-LA17 Laser Diode Aspheric Objective Lens has been specially designed for collimating and focusing laser diodes as well as fiber coupling. This version has a 0.30 Numerical Aperture (NA) and a 6.16 mm focal length with 3.7 mm clear aperture lenses. These lenses have all been corrected for the standard laser diode cover glass. Our aspheric lenses are diffraction-limited molded glass lenses with typical wavefront quality better than λ/20 rms. Each is antireflection coated with MgF2 centered at 780 nm for maximum transmission. These lenses offer an economical solution without sacrificing performance. These objectives are packaged in a microscope objective housing with standard RMS thread. They are compatible with our F-Series fiber coupling devices and ULTRAlign™ fiber positioners
Resources & Downloads
3D Product Models
Other
F-LA17 RoHS Certificate(265 kB, PDF)
