Bandpass Filter, Colored Glass, 50.8 x 50.8 mm, Blue Bandpass, BG39 Glass

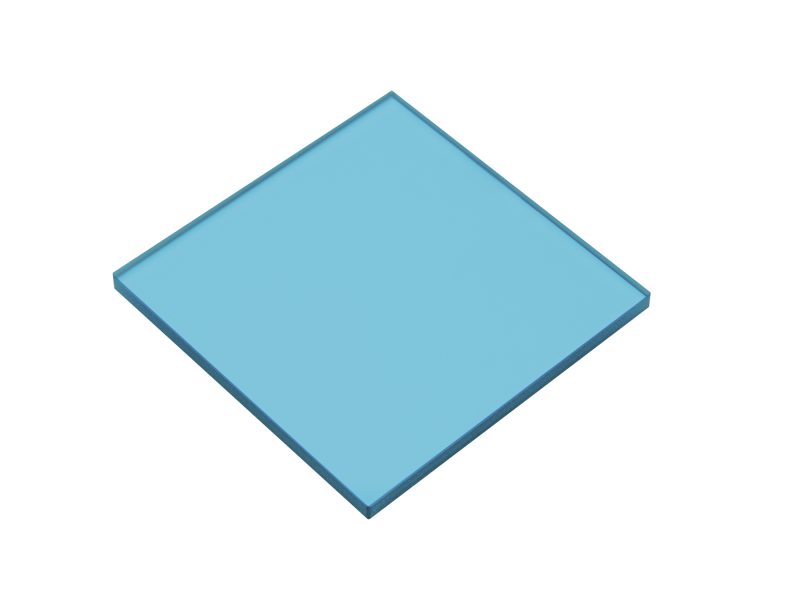

Colored Glass Blue Absorptive Bandpass Filters

Colored Glass Blue Absorptive Bandpass Filters

Colored Glass Blue Absorptive Bandpass Filters

The FSQ-BG39 Colored Glass Bandpass Filter is a 50.8 x 50.8 mm square, blue bandpass optical filter made of Schott BG39 filter glass. These bandpass filters are precision polished for demanding research or OEM applications.

Specifications

Technical Specs

Type
Colored Glass Bandpass Filter
Material
Schott BG39 or equivalent
Center Wavelength
507 nm
FWHM
210 nm
Angle of Incidence
0°
Size
50.8 x 50.8 mm
Size Tolerance
±0.3 mm
Thickness
2.0 to 3.0 mm, typical
Surface Flatness
≤2λ at 632.8 nm over the clear aperture

Surface Quality
60-40 scratch-dig
Damage Threshold
30 W/cm² CW, typical
Wedge
≤3 arc min
Clear Aperture
central ≥ 80% of area
Chamfers
Up to 1 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Type
Colored Glass Bandpass Filter
Material
Schott BG39 or equivalent
Center Wavelength
507 nm
FWHM
210 nm
Angle of Incidence
0°
Size
50.8 x 50.8 mm
Size Tolerance
±0.3 mm
Thickness
2.0 to 3.0 mm, typical
Surface Flatness
≤2λ at 632.8 nm over the clear aperture

Surface Quality
60-40 scratch-dig
Damage Threshold
30 W/cm² CW, typical
Wedge
≤3 arc min
Clear Aperture
central ≥ 80% of area
Chamfers
Up to 1 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Resources & Downloads

Drawings And Cad

COLOREDG-S(61 kB, PDF)

Other

FSQ-BG39 RoHS Certificate(703.5 kB, PDF)
