SM2 Threaded Iris Diaphragm, Ring-Actuated, 1-25 mm Aperture Range

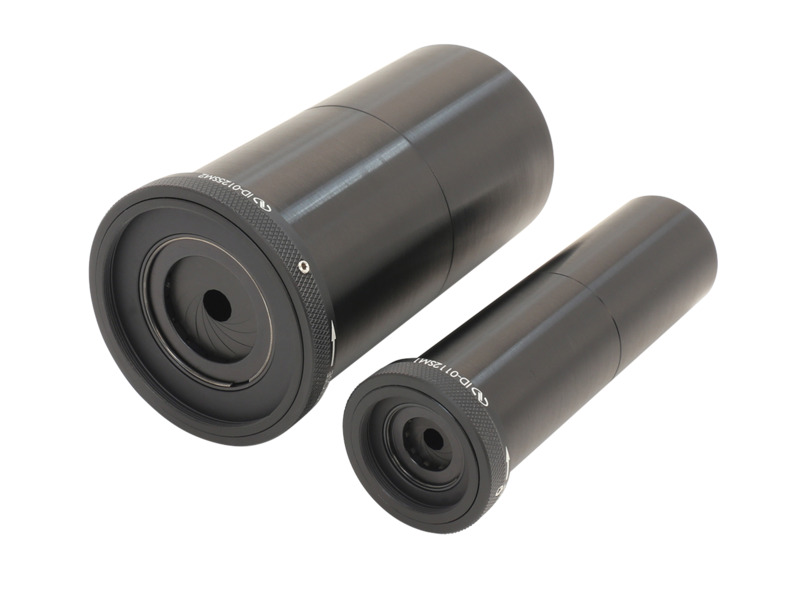

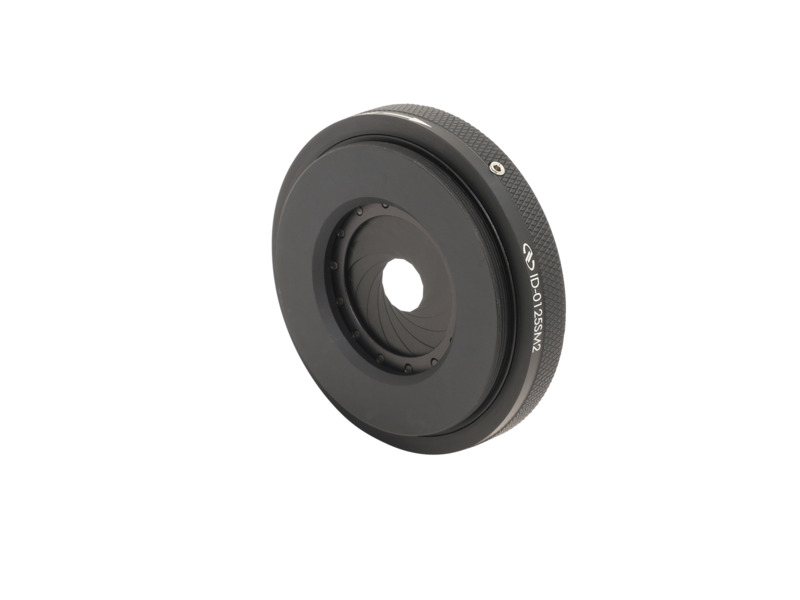

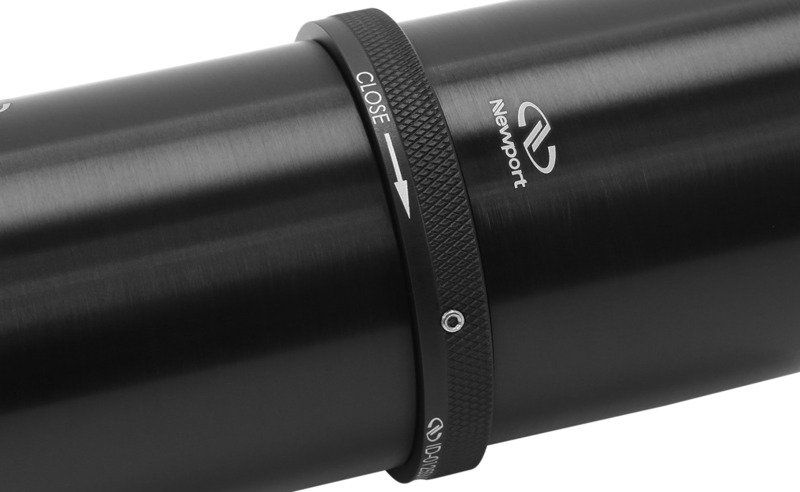

The ID-0125SM2 iris diaphragm is SM2-threaded for use with opto-mechnical components with 2.035-40 thread. The ring-actuated iris diaphragm is low profile with no lever sticking up that could lead to unintended changes. A setscew on the side of housing can further lock the iris in place after designed opening is achieved.

Specifications

Technical Specs

Type
Ring-Actuated Iris Diaphragm
Minimum Aperture
1.0 mm
Maximum Aperture
25 mm

Graduations
No
Number of Leaves
14

Type
Ring-Actuated Iris Diaphragm
Minimum Aperture
1.0 mm
Maximum Aperture
25 mm

Graduations
No
Number of Leaves
14

Resources & Downloads

3D Product Models

2D Product Drawings

ID-0125SM2 RING ACTUATED IRIS.pdf(121.4 kB, PDF)

Other

ID-0125SM2_RoHS2021.pdf(685.6 kB, PDF)
